The SC&T IP09K is an Ethernet extender kit that can extend an existing Ethernet connection up to 800M, with bandwidth up to 100Mbps (up to 500M). Simple to install and use, the IP09K includes two (2) IP09 Ethernet Extenders, and everything you need to connect devices such as IP cameras, IP phones, and wireless access points installed at remote destinations beyond the 100M/328' distance limitation of Ethernet cable.

PoE Extending Solution for CCTV Systems

IP09 series includes IP09, IP09PT, IP09PR, and IP09PH that support up to 800M transmission distance, up to 100Mbps bandwidth, and up to 120W power. You can meet the requirements for different scenarios using different models.

‍

‍

‍

Combine different TX (IP09PT/ IP09PH) and RX (IP09PR/ IP09) to perform accordingly.

‍

• Power source from IP09PR or PoE switch.

‍

Features

‍

Flexible Power Sourcing Options

You can choose a preferable way to provide power for PDs, based on your project requirement.

‍

Customizable Solutions

‍

Use IP09PT and IP09PR to achieve point-to-point transmission

‍

Use IP09PH and IP09PR to extend 4 PoE signals over an Ethernet cable, allowing you to save time and cost for the installation.

‍

Use IP09PH/ IP09PT and IP09 for long distance, high power, and high bandwidth transmission.

‍

PoE over Coaxial Cable

IP09 series also has coaxial version that allows you to upgrade CCTV cameras from analog to PoE without replacing the existing coaxial cables. Click the button below to explore how it can considerably save your time and budget.

‍

‍

Clear LED Indication

Built-in multiple LED indicators for installers to instantly identify the current connection status and to take necessary adjustment.

‍

User-friendly Installation

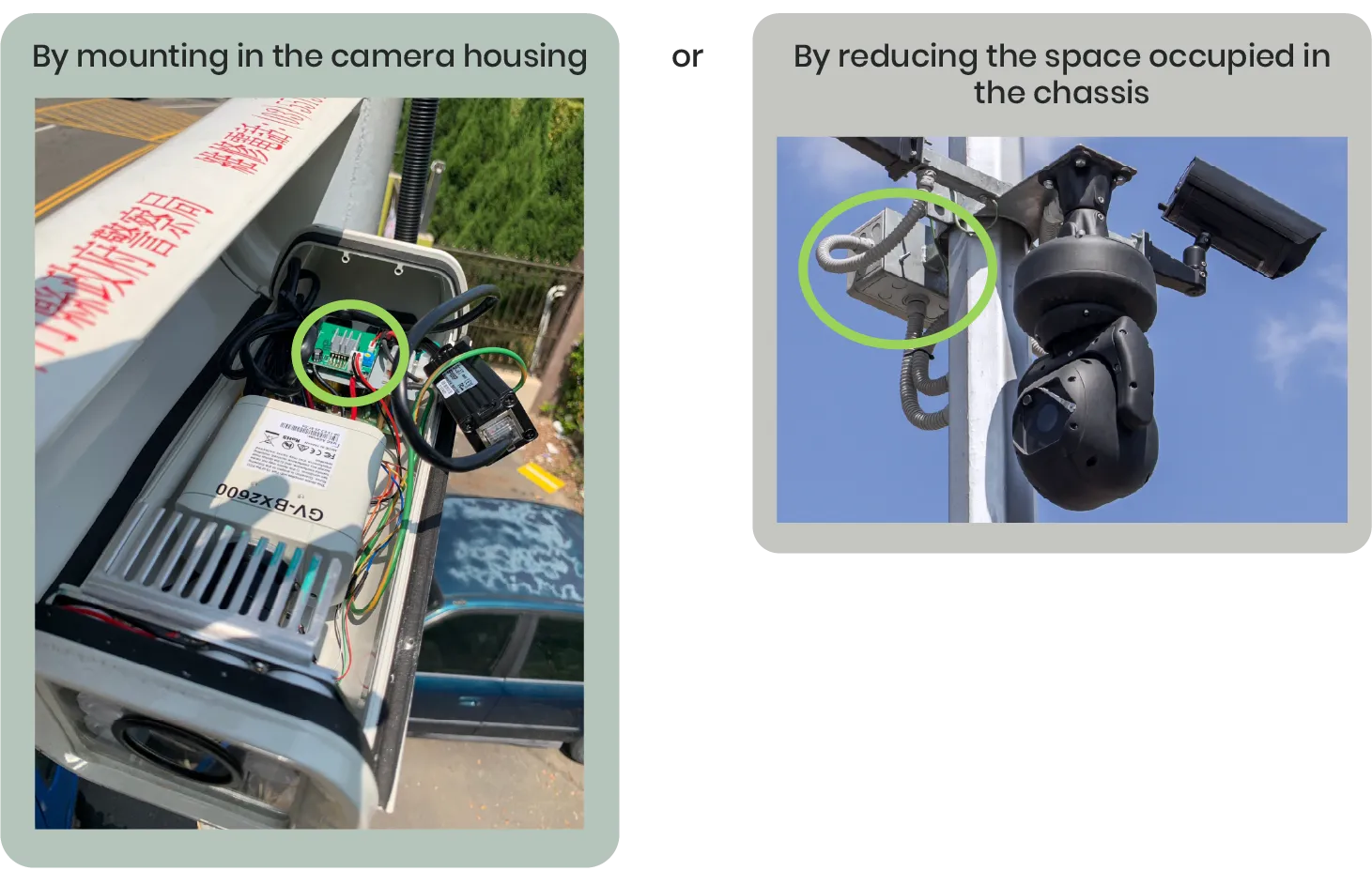

IP09 series is a mountable gadget that can be fixed on wall or a platform.

‍

Detailed Reference Data

We provide detailed test report that can help you customize solutions for projects.
