4K DisplayPort KVM with USB CAT5e Extender 150M - TAA Compliant
SKU: DP02U
Call For Availability
- Regular price
- $539.00
- $539.00
- Regular price
- Sale price
- $599.00
- Unit price
- per
Couldn't load pickup availability
Volume order: Request a quote
Description
Package
Specification
Downloads

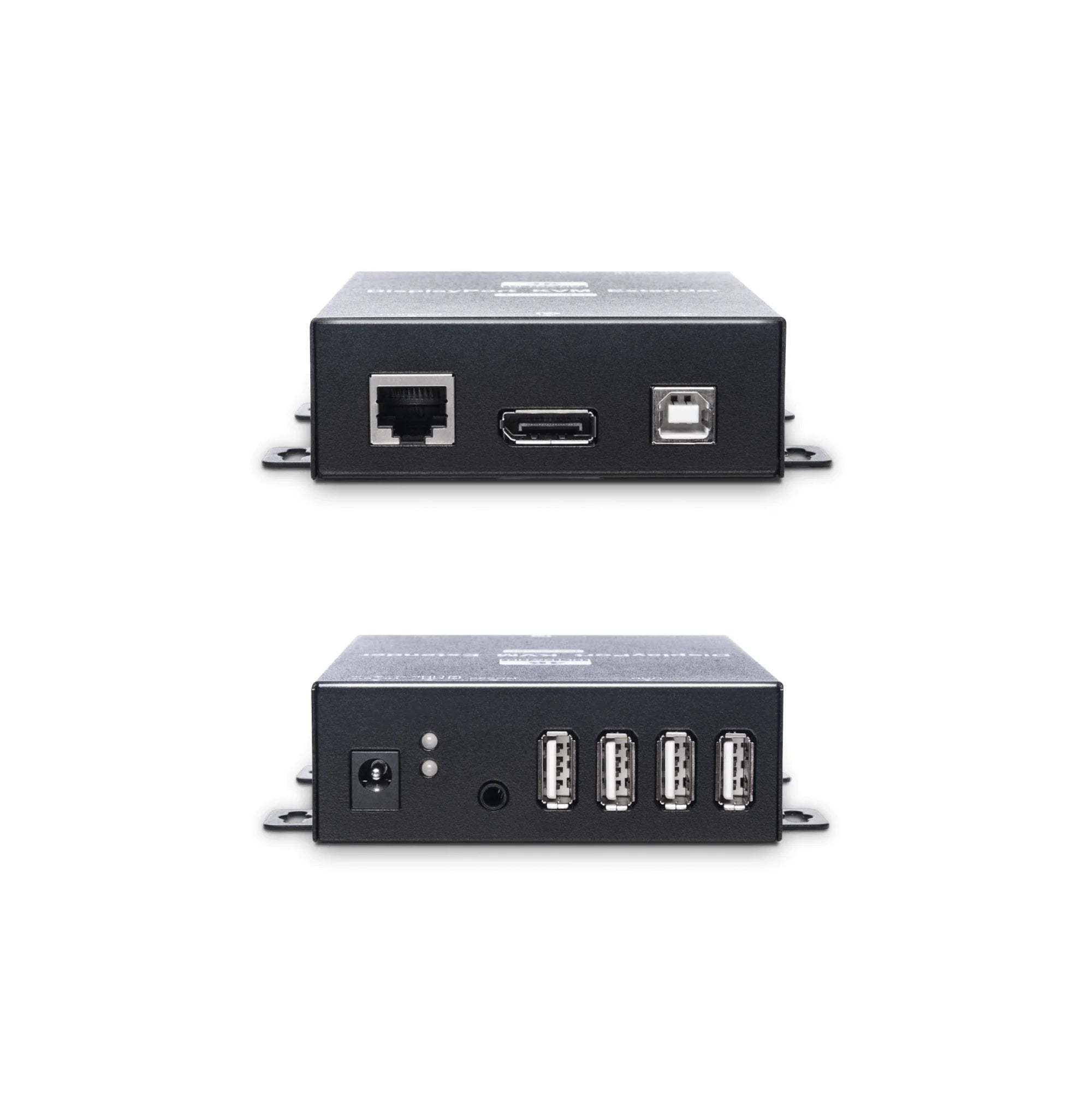

DP02U is a DisplayPort KVM extender that use HDBaseT technology to send uncompressed 4K UHD video & audio, USB, bi-directional RS232 signals over a cost-effective Ethernet cable, It supports resolution up to 4K@30Hz 4:4:4 and the transmission distance up to 150M. The 4 built-in USB ports at RX unit can connect multiple USB devices, such as keyboards, mouses, and flash drives. It is an ideal solution to show video from a PC/laptop on a projector/monitor.
Easily Protect Your Valuable Data over Remote Control
Greatly Increase the Mobility of Your Costly DisplayPort PC
DisplayPort is an ideal signal for specific projects like industrial and commercial. To provide diverse solutions for the markets, we designed DP02U, 4K DisplayPort KVM extender for remote control. It allows your PCs/ data to be put in a secured room and control them from 70M away, preventing valuable assets from accidents and errors making irreversible damages.
Application
High-quality Video & Audio
DP02U uses HDBaseT technology to provide uncompressed 4K@30Hz 4:4:4 DisplayPort video. It also supports LPCM 7.1@192KHz, Dolby TrueHD, DTS-HD MA for the audio format, which can meet the requirements for most projects.
Different Cables for Different Requirements
Based on your requirement, You can use regular Ethernet cables to reach different distances and video resolutions.
*The test result is conducted by the application of CommScope network cables.
Bi-directional RS232 Transmission
Allow you to control a remote RS232-enabled device on the local side or the other way around. The touch panel is also supported for professional applications such as industrial control and access point.
Durable and Stable
Applied in automotive manufacturing and banking where have high demands for stable and durable performance.
USB 2.0 Transmission
Built-in 4 USB 2.0 ports to connect keyboards, mice, flash drives...etc for remote control.
Cost-effective Solution
Despite high stability and durability, DP02U, compared to the market, has a more competitive price to help you save more budget for your projects.
| ITEM NO. | DP02UT | DP02UR |
Support
| Compliance | DP 1.2a, HDCP, USB 2.0, 1.1, 1.0 |
| Max. Video Resolution | 4K@30Hz 4:4:4 |
| Max. Transmission Distance | 150M at 1080p@60Hz, 100M at 4K@30Hz 4:4:4 |
| Audio Support | LPCM 7.1 @ 192KHz, Dolby TrueHD, DTS-HD MA |
| RS-232 Baud Rate | 115200 bps/ Full duplex |

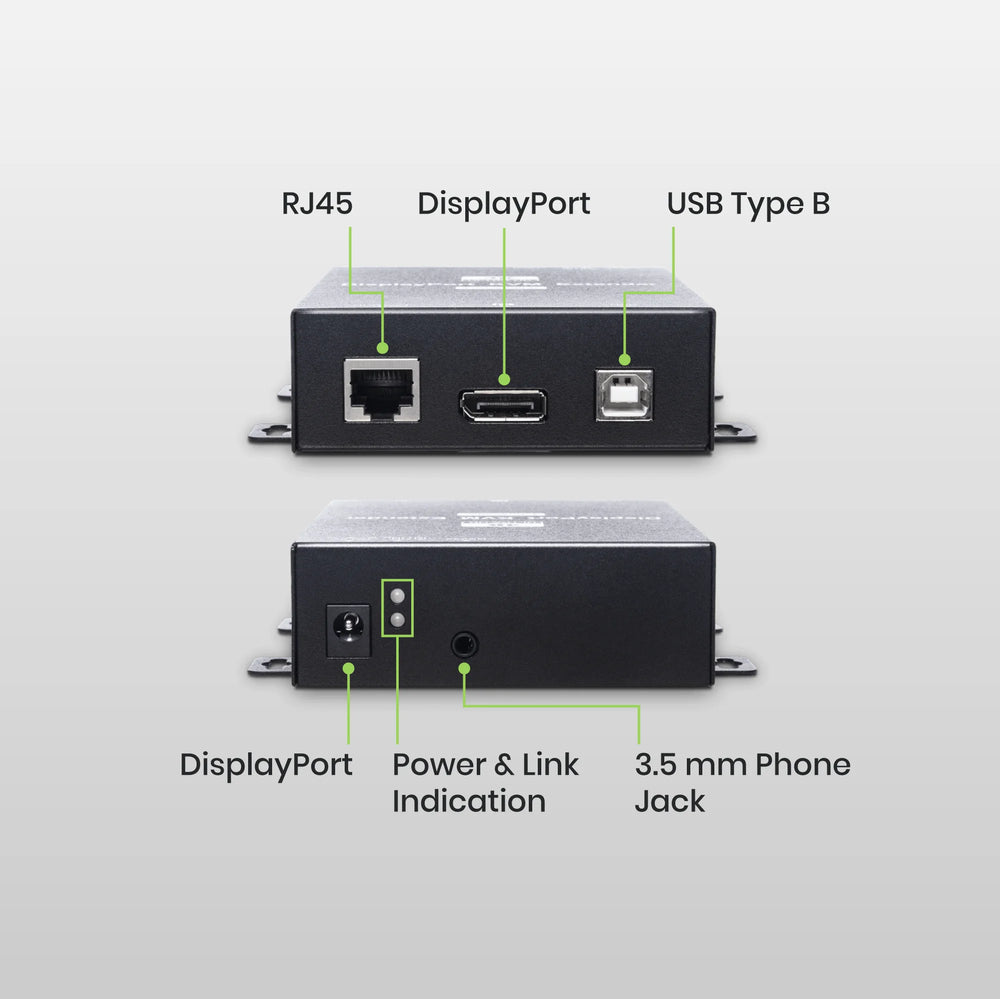

Ports & Interfaces

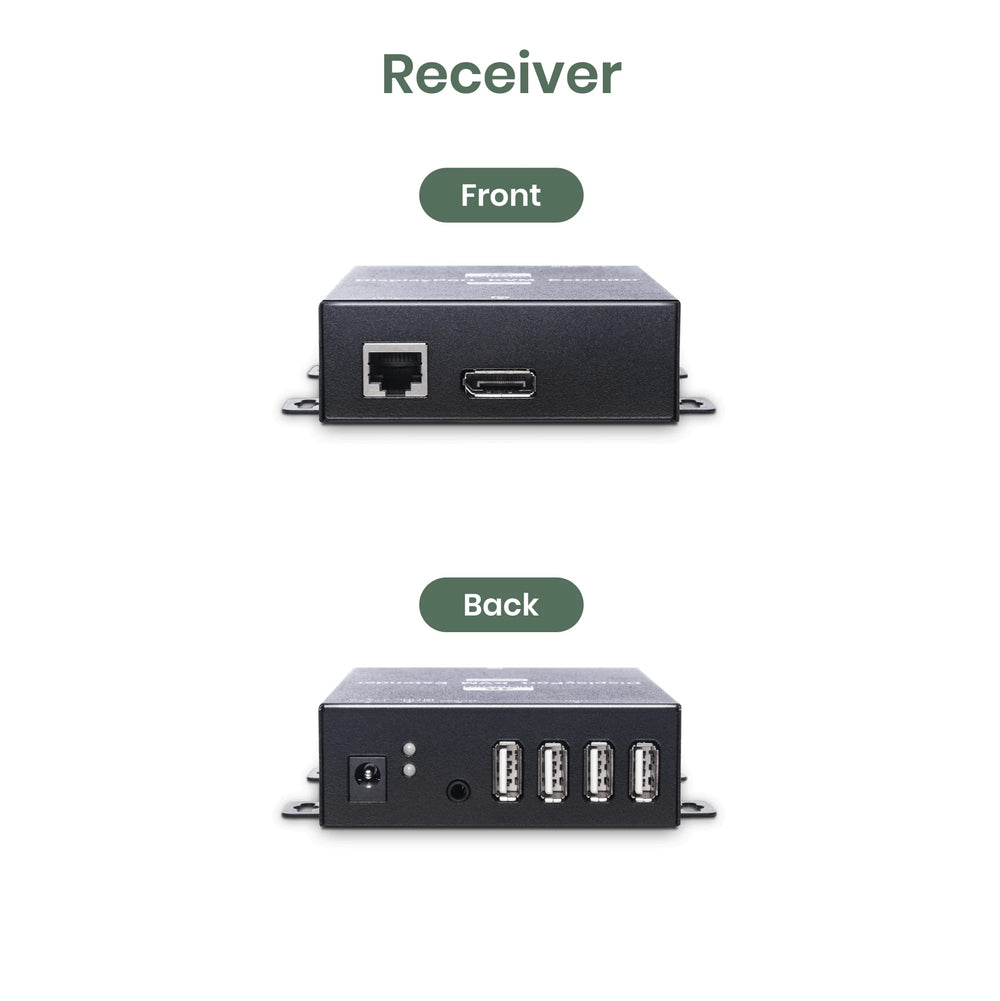

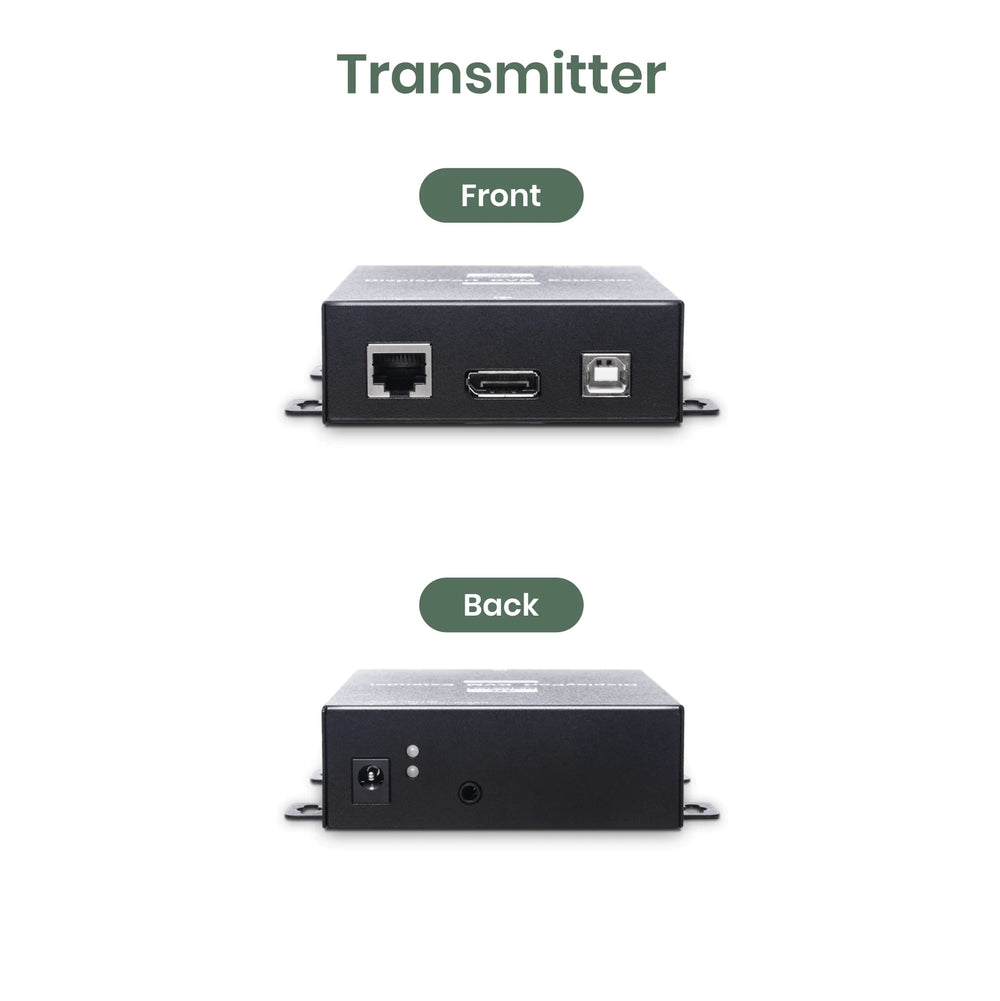

| Video Input | 1 x DisplayPort | 1 x HDBaseT |
| Video Output | 1 x HDBaseT | 1 x DisplayPort |
| USB Connector | 1 x USB Type-B | 4 x USB Type-A |
| RS232 Interface | DB9(F)/3.5mm Stereo Phone Jack | DB9(M)/3.5mm Stereo Phone Jack |
| Link Cable | CAT6 or greater |
Power
| Power Supply | DC 5V 2A Regulated | DC 5V 2A Regulated |
| Power Consumption | 5W (Max), 1W (Power Saving) | 6W (Max), 1W (Power Saving) |
Ambient Temperature
| Operation | -10 to 45℃ |
| Storage | -30 to 70℃ |
| Humidity | Up to 90% |
Physical Characteristic
| Dimensions | 109.6 x 108 x 30mm | 109.6 x 108 x 30mm |
| Weight | 265g | 265g |
Firmware/Software
| Release Date | Ver. | File Name |
| September 1, 2023 | V1.0_2309011 | DP02UR_Firmware_V1.0_2309011.zip |
