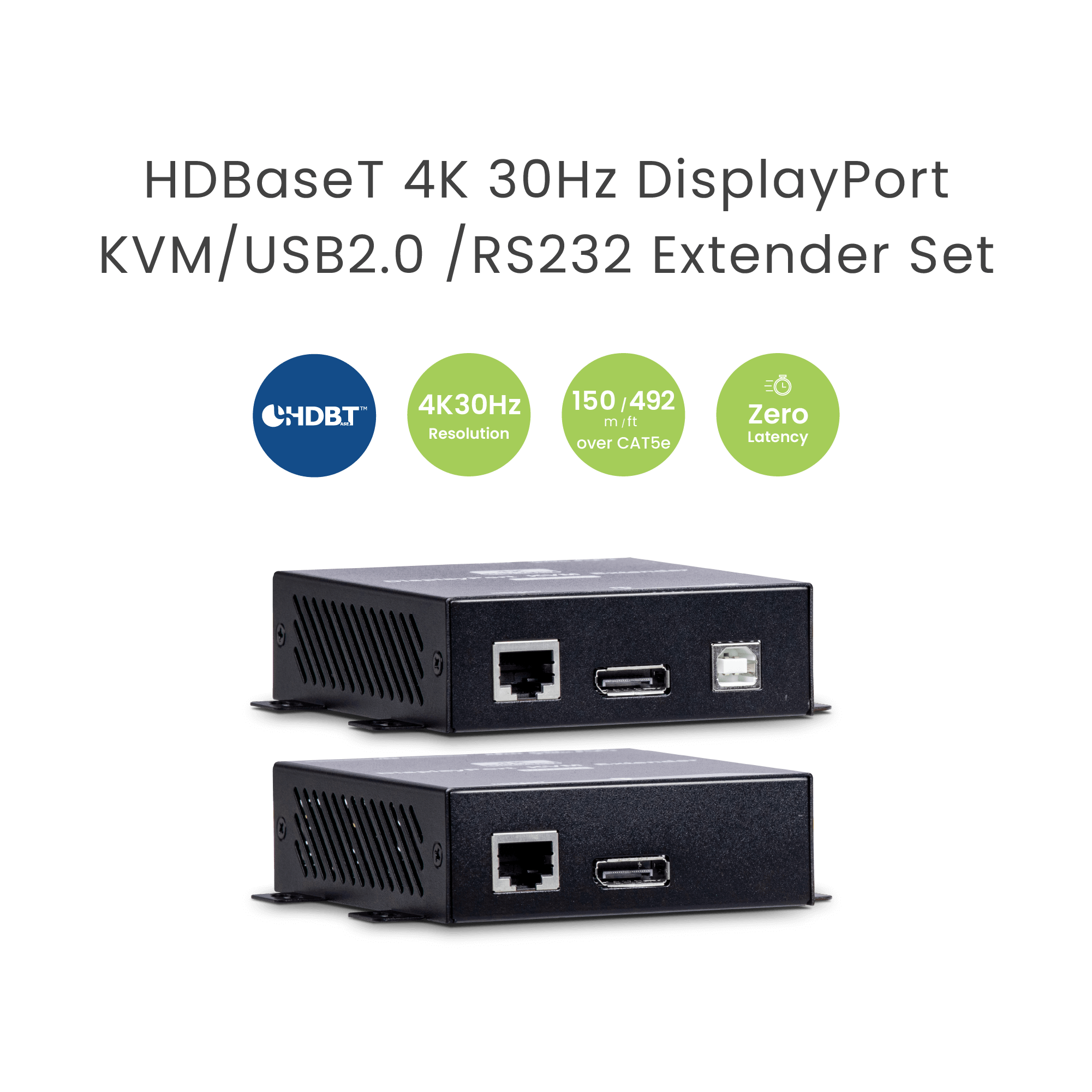

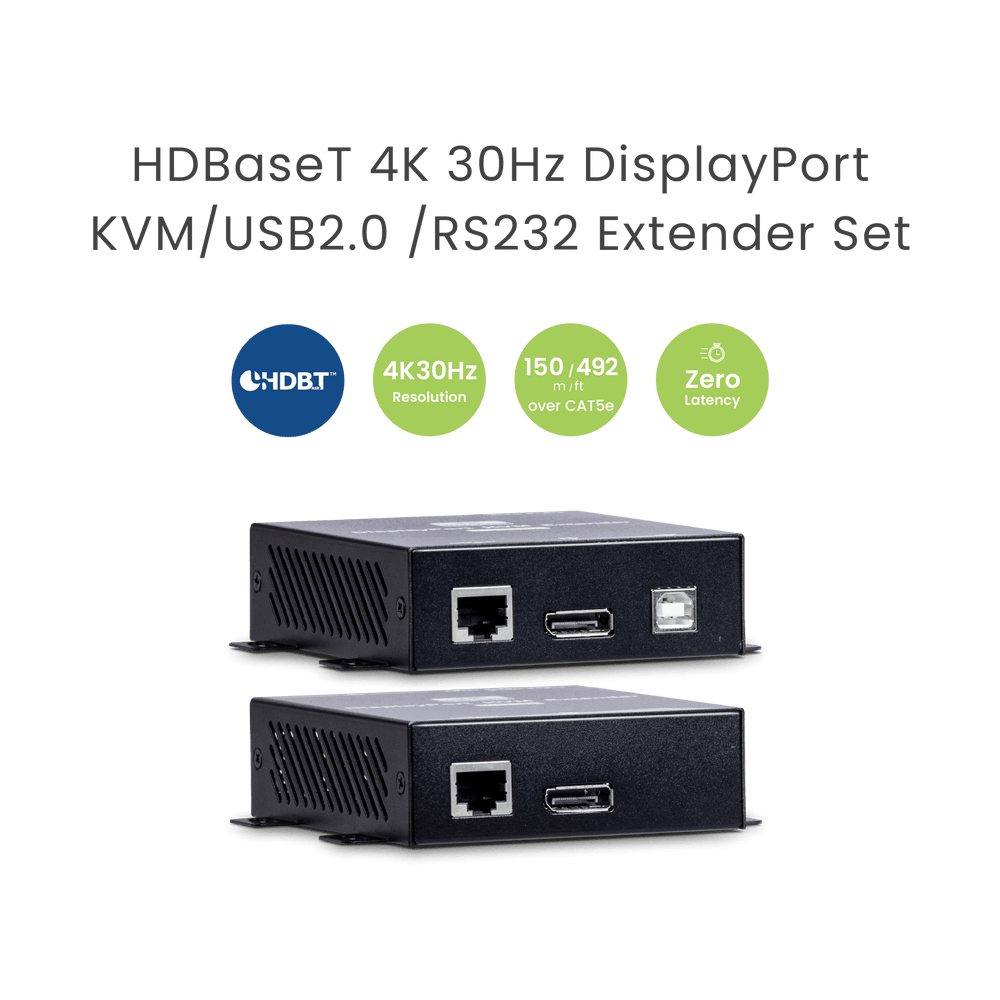

HDBaseT 4K30Hz DisplayPort KVM/USB 2.0 Extender Set, Up to 100 m, Uncompressed Video, Zero-Latency, RS232 - TAA Compliant

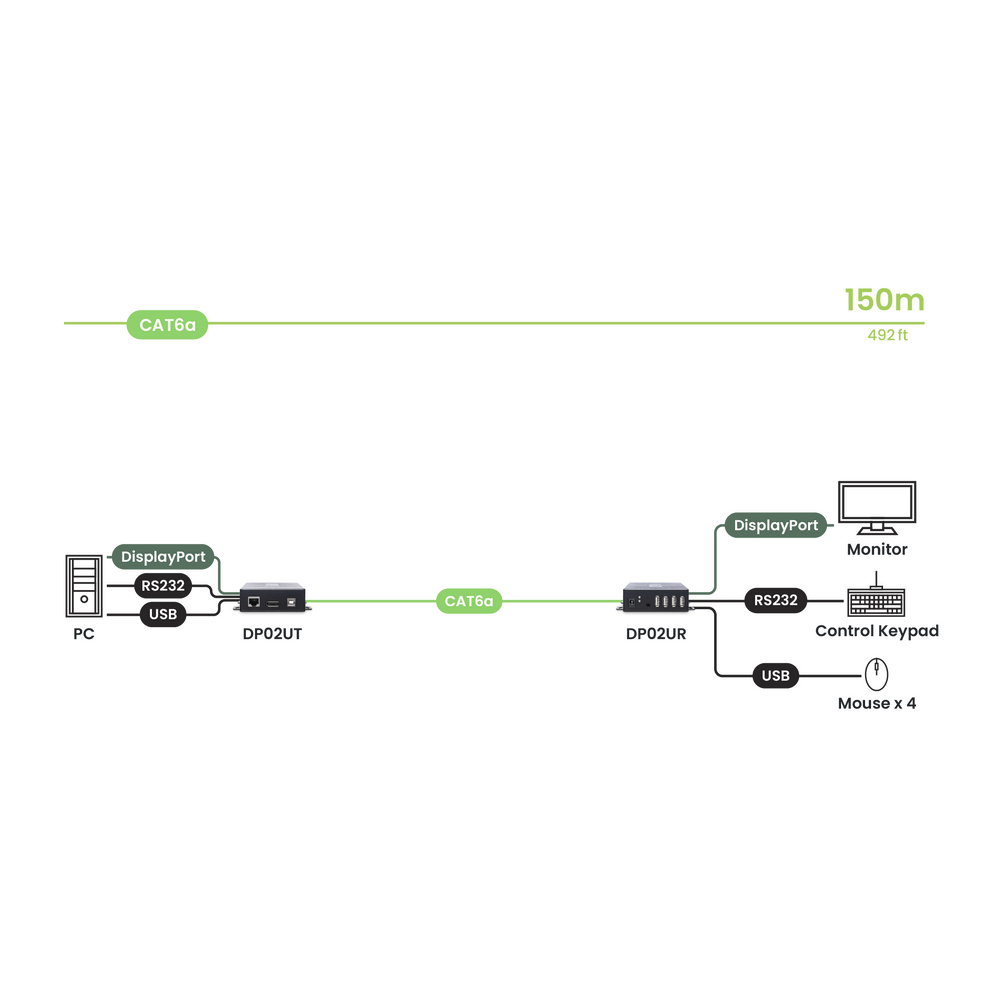

Connection Diagram

Overview

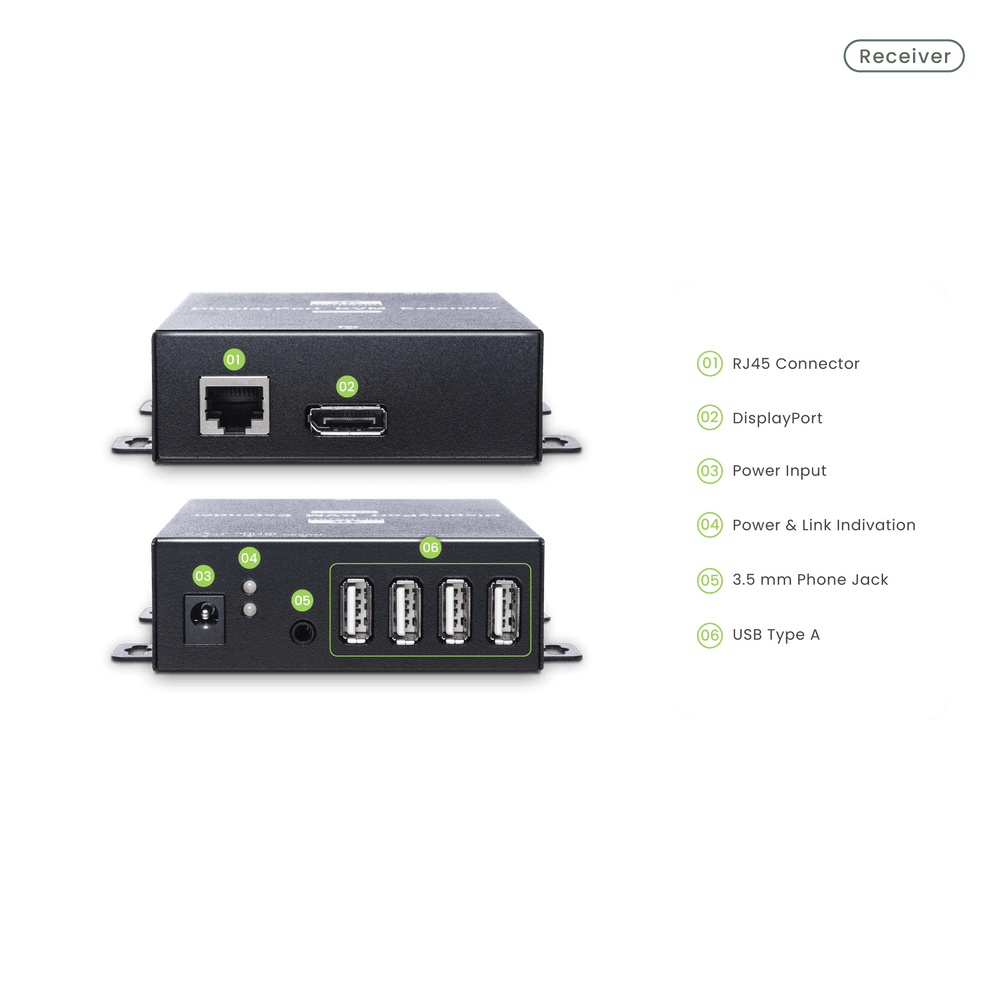

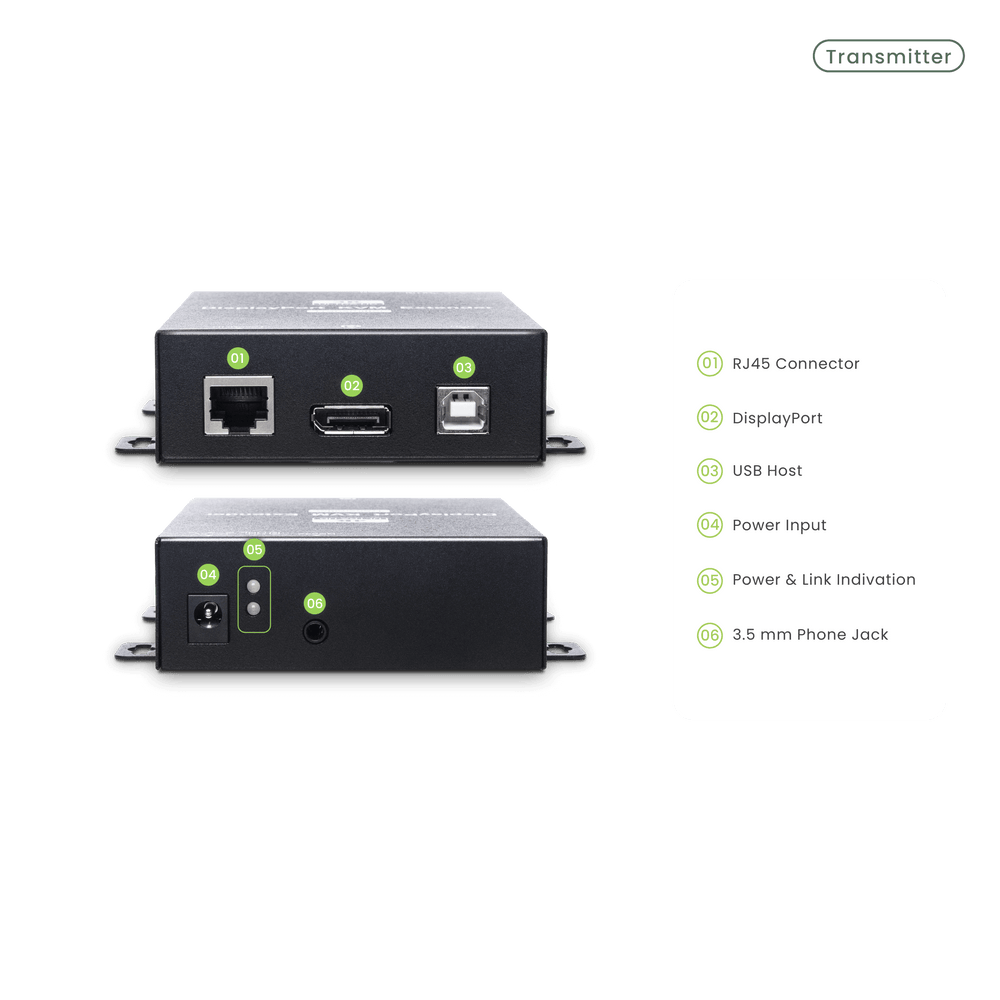

DP02U is a DisplayPort KVM extender that utilizes HDBaseT technology to deliver uncompressed video, digital audio, USB, and bi-directional RS232 signals over cost-effective Ethernet cabling. It supports high-quality resolutions up to 4K30Hz with an impressive transmission range of up to 150m. The receiver unit is equipped with 4 built-in USB ports, allowing for the convenient connection of various USB devices like keyboards, mice, and flash drives. It serves as an ideal and reliable solution for extending high-definition video from a PC or laptop to a remote monitor or touch panel.

Easily Protect Your Valuable Data over Remote Control

Greatly Increase the Mobility of Your Costly DisplayPort PC

DisplayPort is an ideal signal for specific projects like industrial and commercial. To provide diverse solutions for the markets, we designed DP02U, 4K DisplayPort KVM extender for remote control. It allows your PCs/ data to be put in a secured room and control them from 70M away, preventing valuable assets from accidents and errors making irreversible damages.

Application

High-quality Video & Audio

DP02U uses HDBaseT technology to provide uncompressed 4K@30Hz 4:4:4 DisplayPort video. It also supports LPCM 7.1@192KHz, Dolby TrueHD, DTS-HD MA for the audio format, which can meet the requirements for most projects.

Different Cables for Different Requirements

Based on your requirement, you can use regular Ethernet cables to reach different distances and video resolutions.

*The test result is conducted by the application of CommScope network cables.

Bi-directional RS232 Transmission

Allow you to control a remote RS232-enabled device on the local side or the other way around. The touch panel is also supported for professional applications such as industrial control and access point.

Durable and Stable

Applied in automotive manufacturing and banking, where there is a high demand for stable and durable performance.

USB 2.0 Transmission

Built-in 4 USB 2.0 ports to connect keyboards, mice, flash drives, etc. for remote control.

Cost-effective Solution

Despite high stability and durability, DP02U, compared to the market, has a more competitive price to help you save more budget for your projects.
