HD-TVI/AHD/HDCVI/CVBS Video & Power Balun with Pigtail

SKU: TTP111HDP-LK

In Stock

Regular price
$11.25
$11.25
Regular price
Sale price
Unit price
 per

Contact us for project pricing or out-of-stock orders, and we’ll secure them quickly for you.

  • Resolution up to 4K (8MP).
  • Signal extension up to 300M over CAT5e (or greater) cable.
  • Built with DC plug for power transmission.
  • Male BNC to RJ45 connector with pigtail design.
  • Built-in ESD, EFT(impulse noise) and transient protection.

Discounted UPS Shipping Rates

45 Day Money Back Policy

2 Years Warranty

Lifetime Customer Support

Description

Package

Specification

FAQ

Download

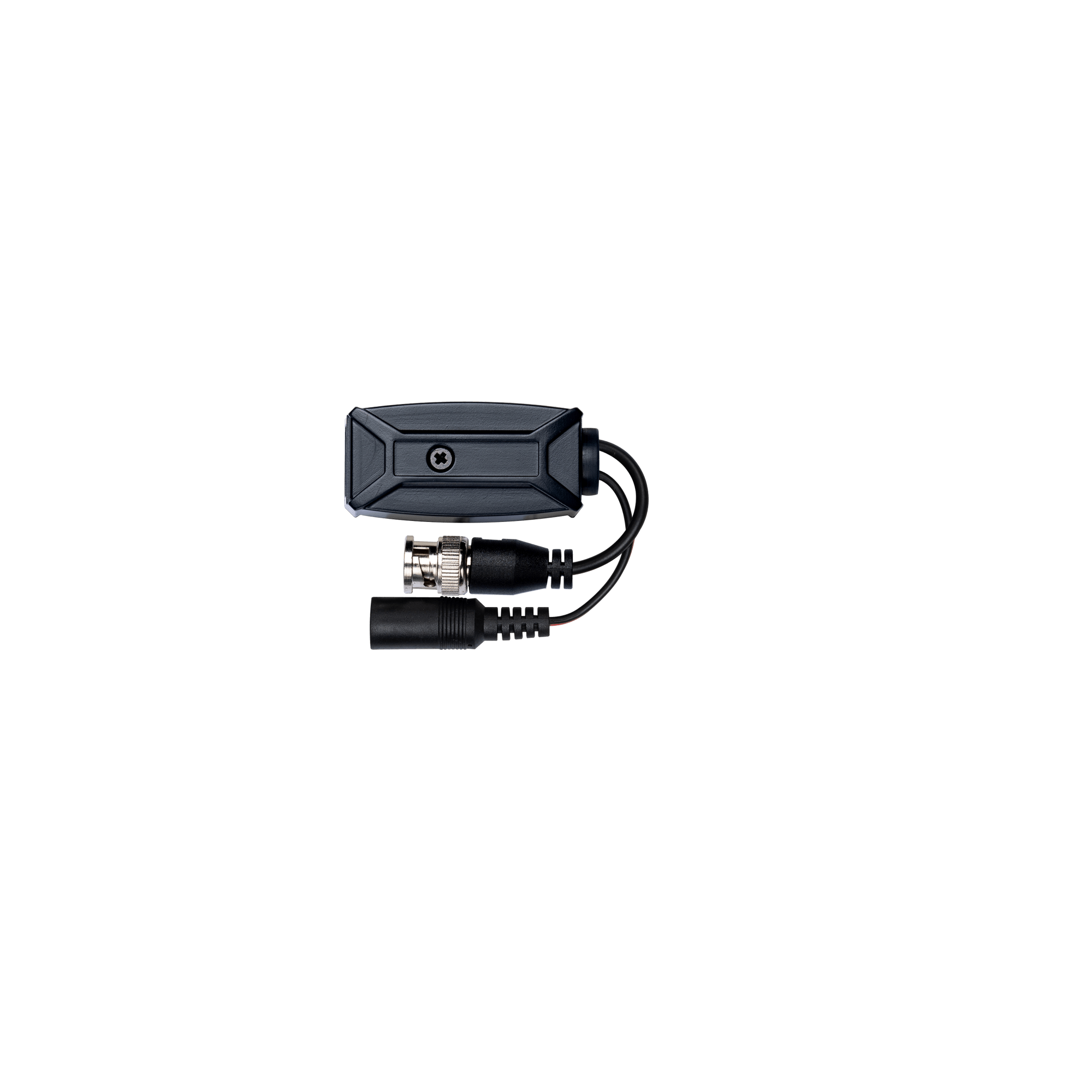

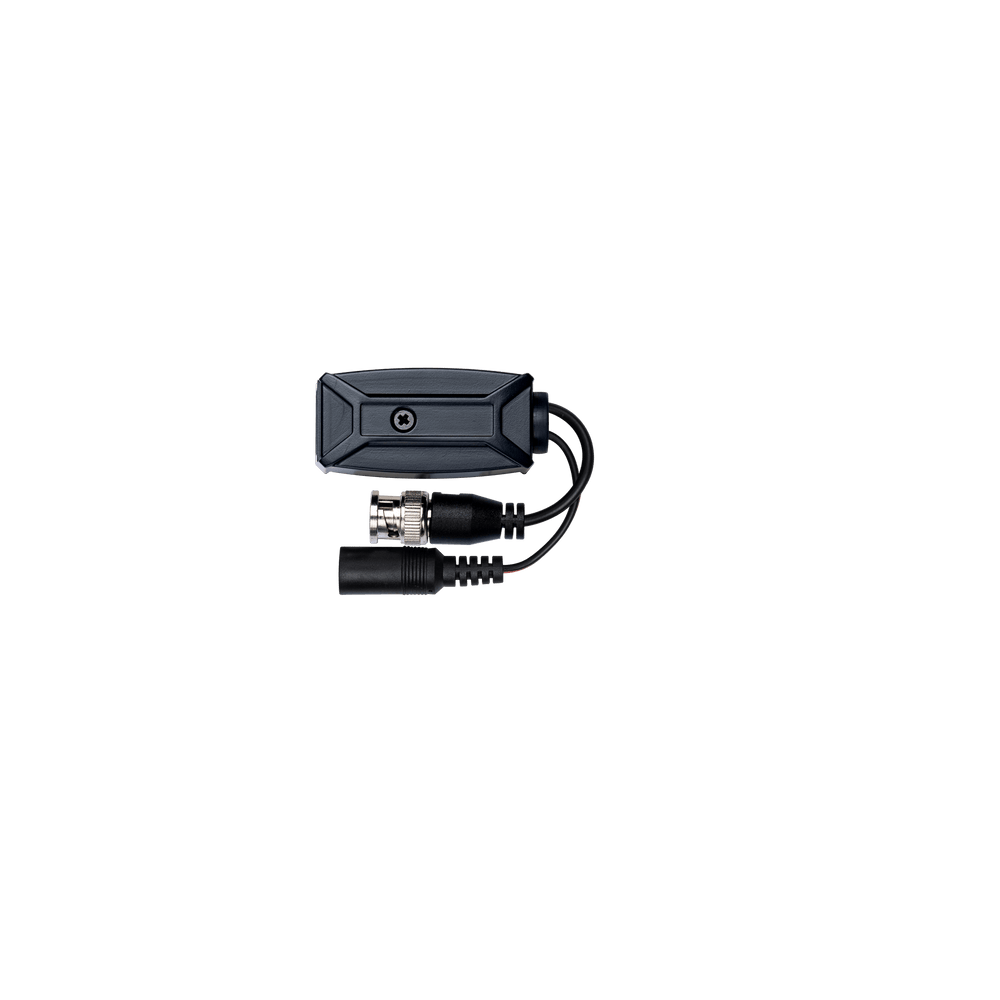

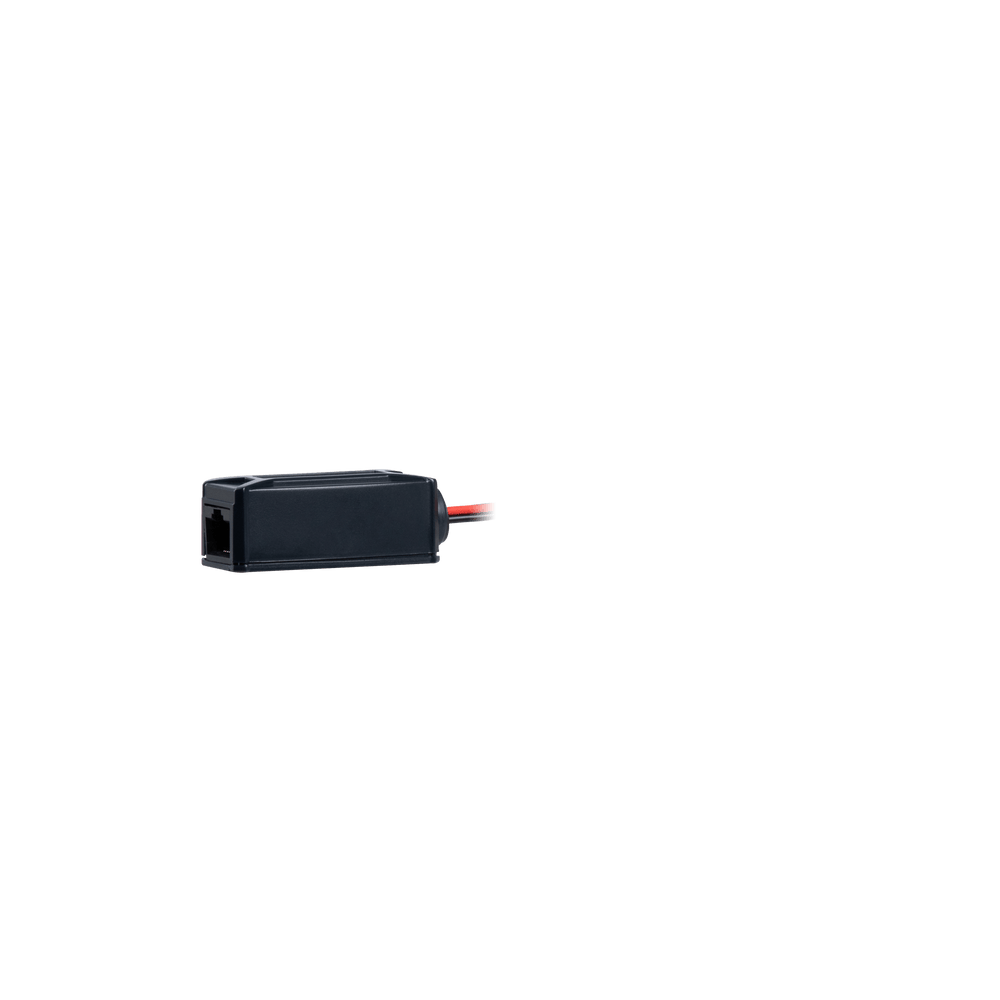

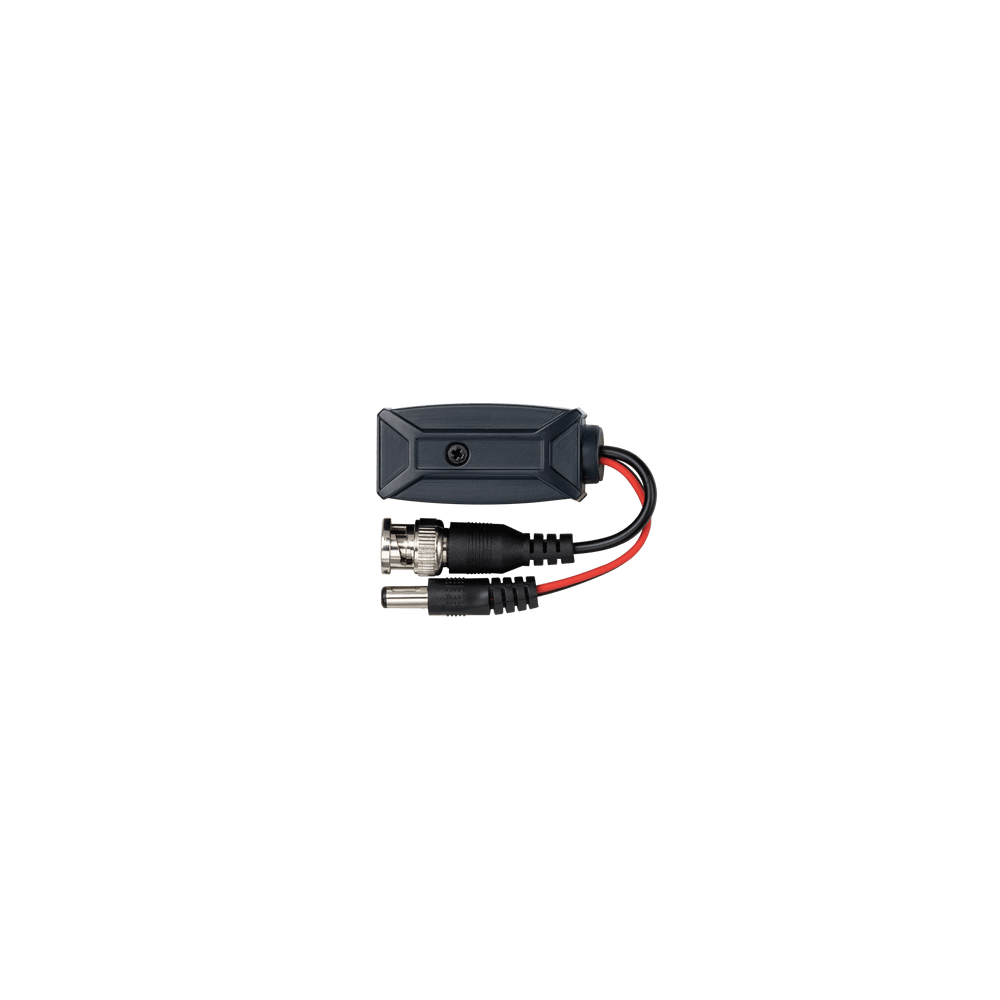

TTP111HDP-LK is a video balun that can use a single cost-effective Ethernet cable to extend HD-TVI/ AHD/ HDCVI/ CVBS signal and power, with the transmission distance up to 400M and the resolution up to 4K (8MP). The equipped power plug can also provide power from the local power supply for a remote CCTV camera, and the pigtail design allows you to have an easier, faster connectivity experience. Besides, the balun has built-in ESD, EFT, and surge protection components, allowing the unit to have a longer product lifespan.

ITEM NO. TTP111HDP-L TTP111HDPJ-L

Support

Max. Video Resolution 8MP (4K)
Max. Transmission Distance HD-TVI 100M at 1080p
AHD 150M at 8MP
HDCVI 100M at 8MP
CVBS 300M (NTSC/ PAL)
Signal Bandwidth 50Hz to 60MHz ( -3dB )

Ports & Interfaces

Video Input/ Output 1 x BNC (1 Vp-p, 75 Ohm)
Link Interface 1 x RJ45 (100 Ohm)
Power Interface 1 x DC Plug (ø2.1 x 5.5mm) 1 x DC Jack

Ambient Temperature

Operation 0 to 55℃
Storage -20 to 85℃
Humidity Up to 95%

Physical Characteristic

Dimensions 52.6 x 25 x 20.7mm & 120mm pigtail cable
Weight 45g

Protection

ESD Protection 30kV(Air), 15kV (Contact), IEC 61000-4-2
EFT Protection 40A(5/50ns), IEC 61000-4-4
Lightning Protection 2A (8/20μs), IEC 61000-4-5
Response Time <1 nS

User Manual

TTP111HDP-LK_User Manual_EN_V1.0.pdf

CAD

TTP111HDP-L_CAD-20210429.pdf

TTP111HDPJ-L_CAD-20210505.pdf
