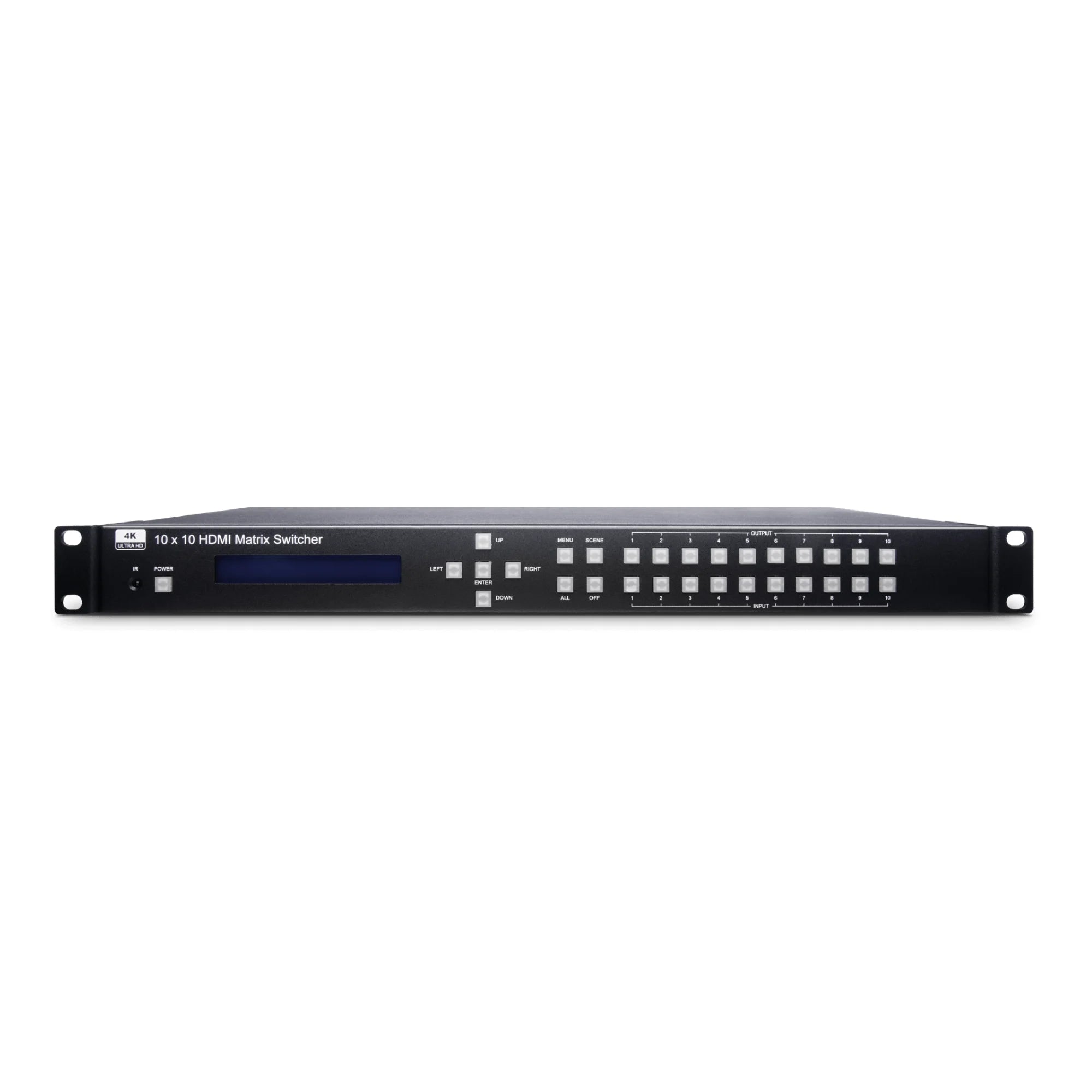

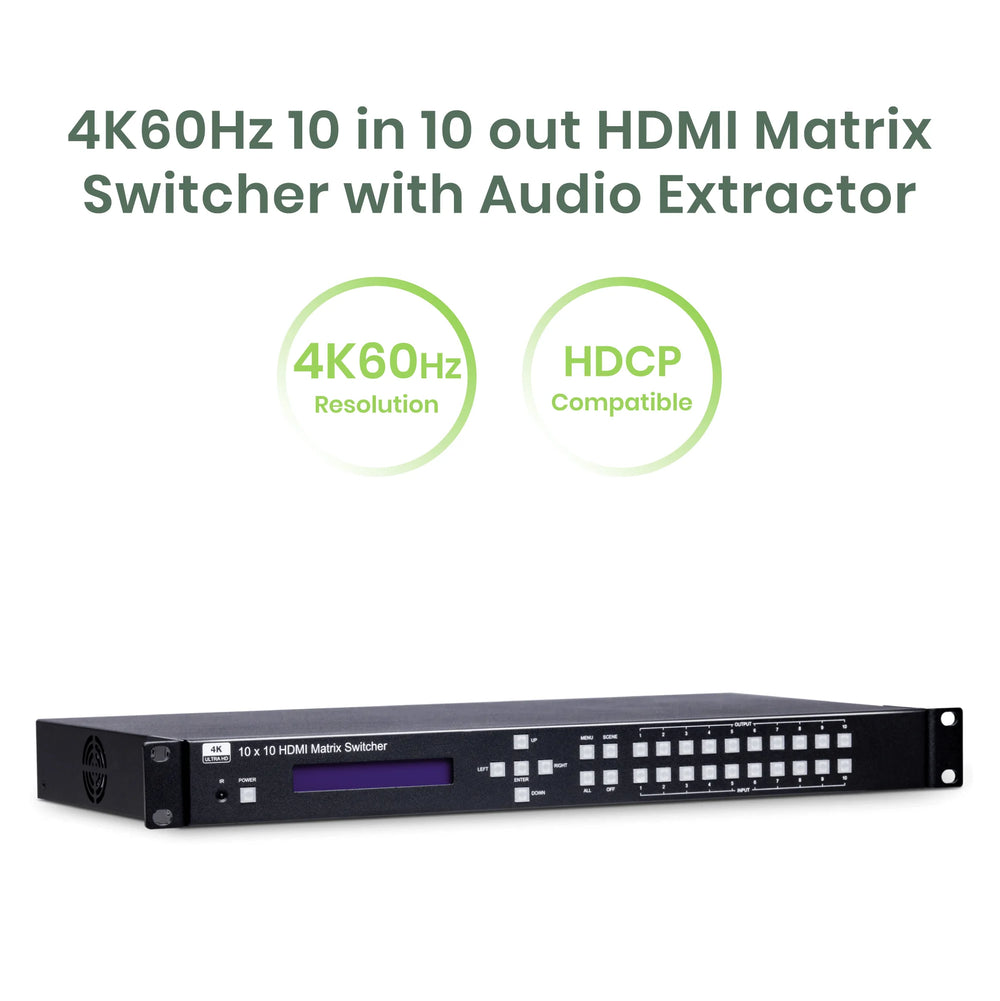

4K60Hz 10 in 10 out HDMI® Matrix Switcher with Audio Extractor - TAA Compliant

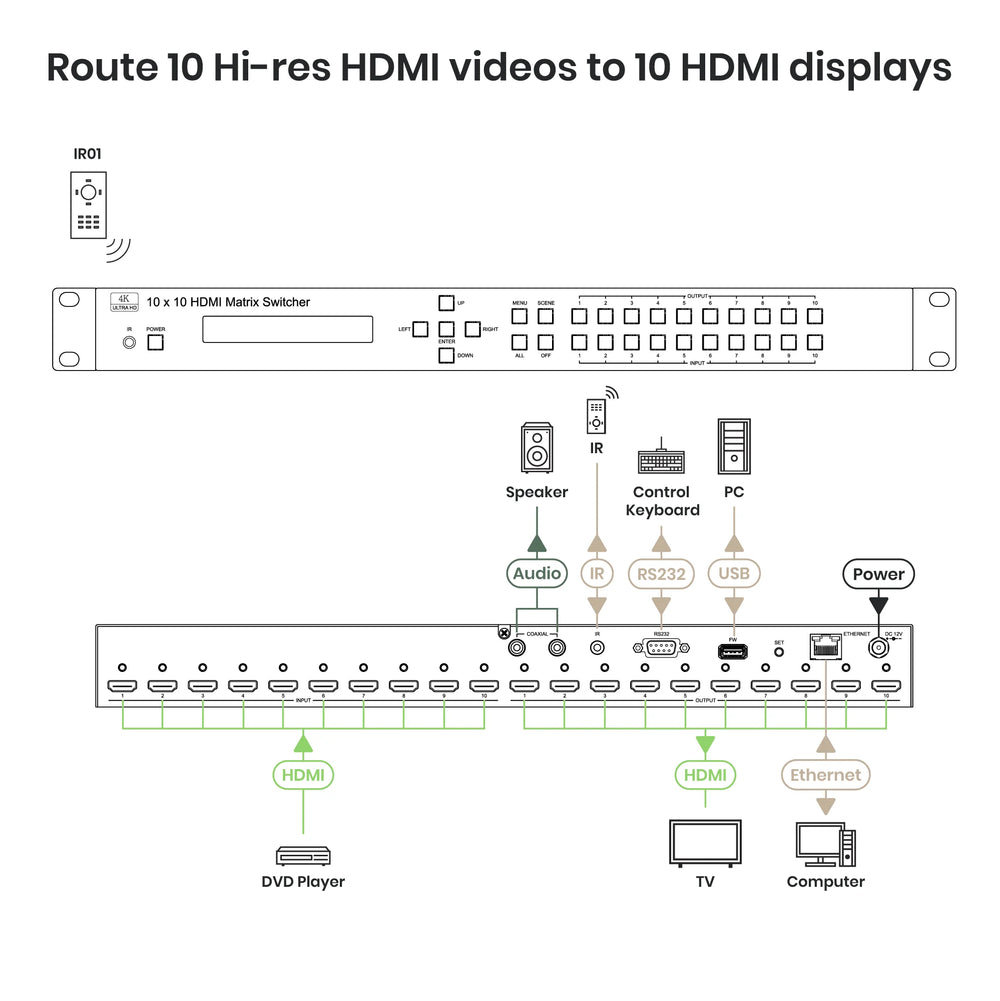

HS10M-4K6G is a 10-in-10-out HDMI matrix switch that can route 10 Hi-res HDMI videos to 10 HDMI displays. Moreover, the built-in audio extraction function allows you to integrate with your premium audio equipment for a superior audiovisual experience. With all the powerful features, you have multiple ways to control and manage the matrix depending on your needs. Such as an IR remote, RS232 commands, front panel buttons, Web GUI, Telnet, and Android/iOS mobile APP.

4K 10 in 10 out HDMI Matrix Switcher for Your Professional Projects

HS10M-4K6G can put 4K 60Hz 4:4:4 HDMI videos, such as PCs, game consoles, Blu-ray players, on hi-resolution PC monitors, TVs, and projectors. The input/ output distance can typically reach up to 35 feet but you can double the distance using HR01-4K6G (HDMI Repeater), which makes it applicable in large spaces like conference rooms, banks, sports bars, and control centers.

Application

Distance

• Maximum input cable distance: ~25 feet AWG22 HDMI 1.4 high-speed cable

• Maximum output cable distance: ~35 feet AWG22 HDMI 1.4 high-speed cable

• Maximum output 4K cable distance: ~25 feet AWG24 HDMI 2.0 high-speed cable

Features

Intuitive Controls

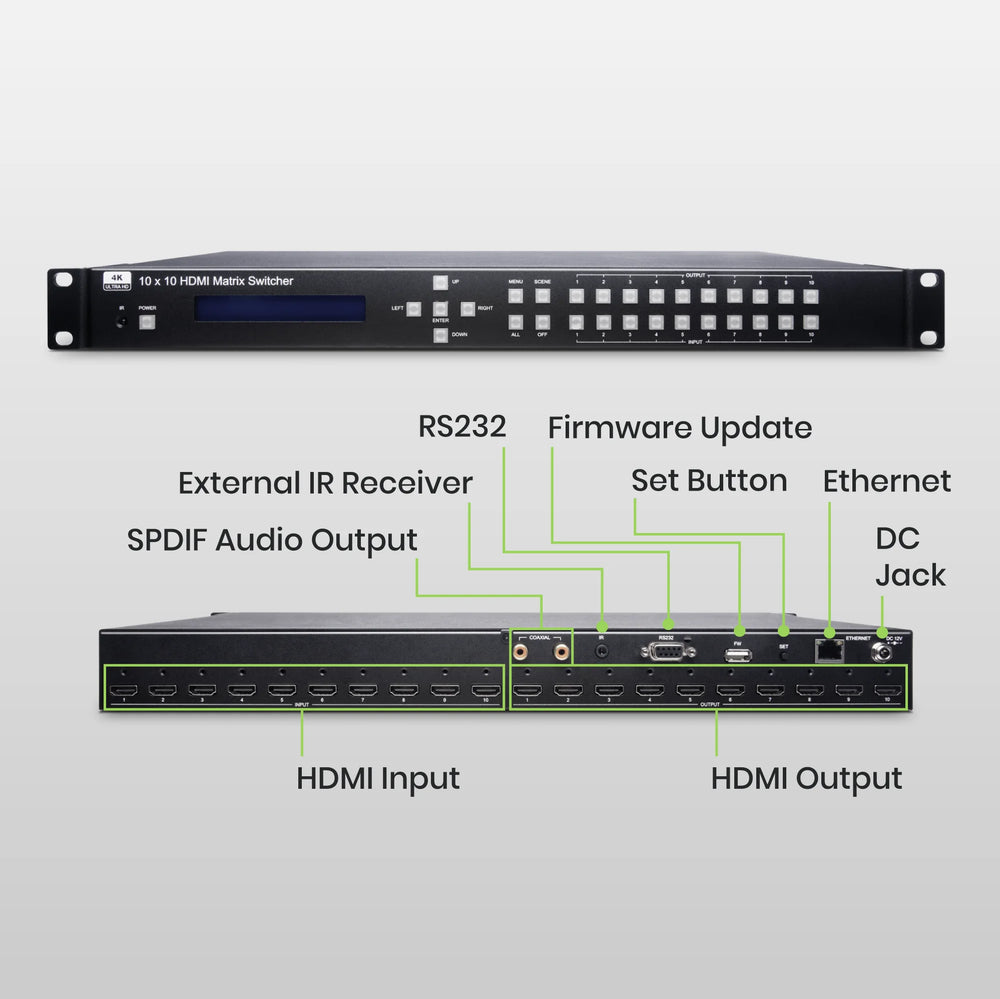

Can be controlled via IR remote, RS232 commands, Web GUI, Telnet, front panel buttons, and Android/ iOS mobile APP. It's built for not only A/V professionals but people with little understanding of technology.

EDID Management

Multiple resolutions can be chosen from, with the EDID copy function that allows hi-res videos to be properly displayed on any HDMI monitor.

Save/Load Your Scenes

Supports up to 10 sets of video layout. You can easily save and change a video layout, and restore it without configuring each input and output again.

Audio Extraction

Allows for integration with exing premium audio equipment via a SPIDF (coaxial) connector, providing more flexibility for the installation.

Installation-Friendly

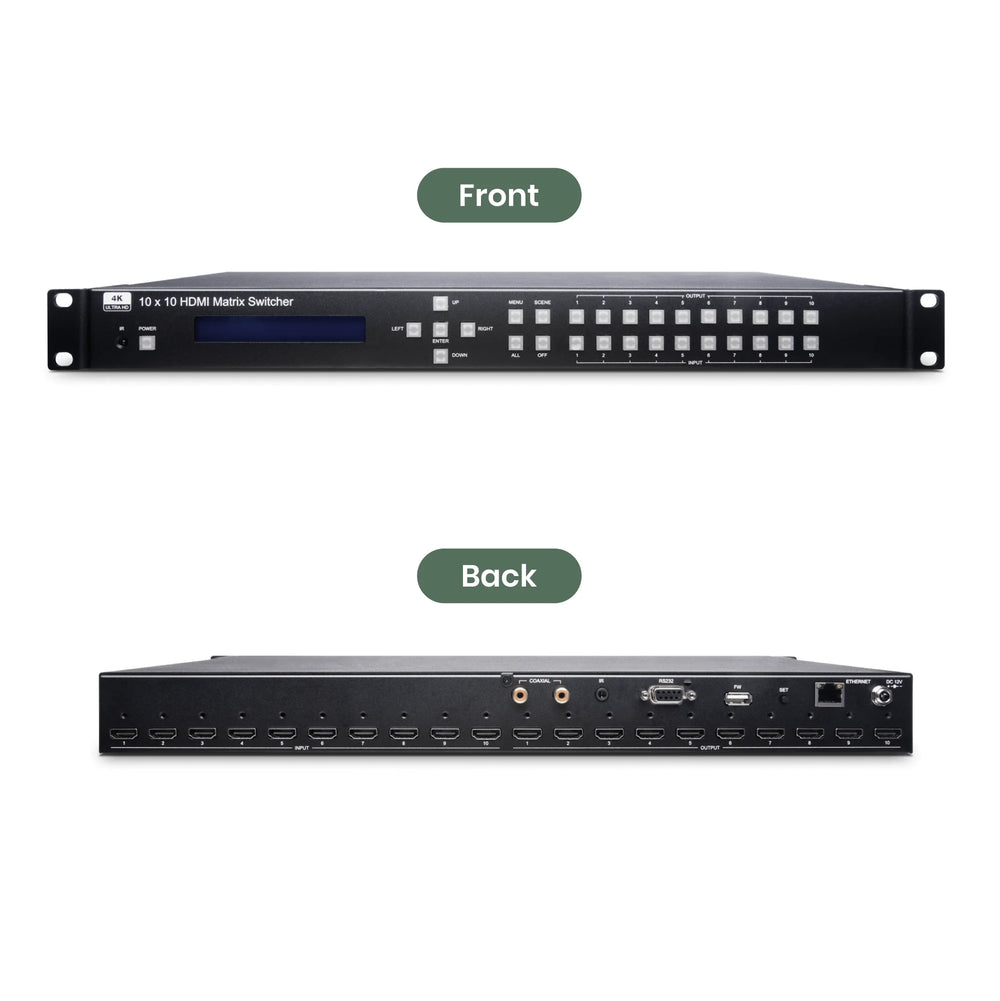

Mountable with standard 1U (1+3⁄4 inches or 44.45 mm height) rack to be centrally managed in a cabinet.
