4-Port Long Reach PoE Extender over Cat5e Kit

The SC&T 4-Port Long Reach PoE Extender over Cat5e Kit (IP09PHK) allows users to connect up to 4 PoE devices to their network at distances of up to 800 meters over Cat5e (or above) cable. The IP09PHK supports IEEE 802.3 at, 802.3 af, and 802.3at standards, offering versatility in powering various PoE devices such as IP cameras. With a maximum power output of up to 90W (depending on factors such as cable length), it is an ideal choice for applications like CCTV systems.

The IP09PHK Long Reach PoE Extender Kit includes one (1) IP09PR Ethernet Extender and one (1) IP09PH 4-Port PoE Extender, ready for plug-and-play operation out of the box to instantly connect up to 4 PoE devices at a distance of up to 800M. The IP09PHK flexible power options (seen in diagrams below), allows for seamless integration, making the IP09PHK an ideal solution for a multitude of applications, including CCTV systems, large-scale audio environments, smart buildings, and factories, among others.

PoE Extending Solution for CCTV Systems

IP09 series can extend the PoE over CAT5e distance for up to 800m with the highest 100Mbps bandwidth and 120W power. There are different models, including PoE extenders, IP extenders, and 4-port PoE extender switches to satisfy your different extension needs. You can connect your point-to-point devices with IP09PT/R, use a 4-port PoE extender to connect several remote devices, or combine these models for needs in different scenarios.

‍

‍

‍

Our IP09PT/R PoE extender supports the IEEE 802.3bt standard for your single PoE camera to transmit PoE signals to a maximum of 800m. The 4-port PoE extender IP09PH supports IEEE 802.3at, which can transmit enough power supply for up to 4 PoE cameras.

You can also combine different IP09 series models at TX and RX to build a custom PoE extension system. Please refer to the below table for the combination of different TX (IP09PT/IP09PH) and RX (IP09PR/IP09) and their performance. Power can be sent from either RX or an Ethernet/PoE switch.

‍

• Power source from IP09PR or PoE switch.

‍

IP09 Series Features

Flexible Power Sourcing Options

Based on your project requirement, you can choose a preferable way to provide power for PDs.

‍

Customizable Solutions

The power supply source can be from IP09PT, the PoE switch, or IP09PR. If you supply power at TX or RX, you can use a non-PoE switch to connect your devices, which is ideal for an outdoor, long-range CCTV system.

‍

If you need a point-to-point PoE extension, you can choose our IP09PT and IP09PR to transmit the signals from a remote camera to your device.

‍

Use IP09PH and IP09PR to extend 4 PoE signals over an Ethernet cable, saving your installation time and cost.

‍

Use IP09PH/IP09PT and IP09 for long-distance, high-power, and high-bandwidth transmission.

‍

PoE over Coaxial Cable

IP09 series also has a coaxial version that allows you to upgrade CCTV cameras from analog to PoE cameras without replacing the existing coaxial cables. Click the button below to explore how it considerably saves your time and budget.

‍

‍

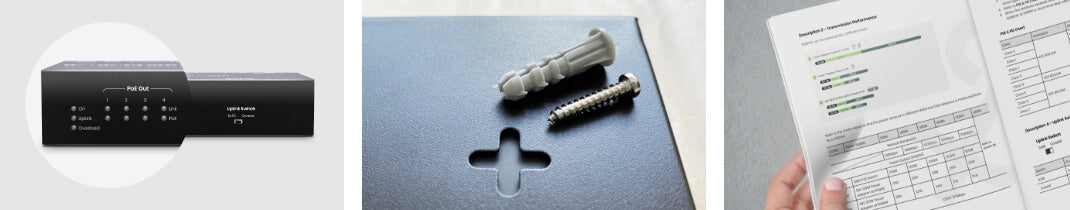

Clear LED Indication

Built-in multiple LED indicators for installers to instantly identify the current connection status and take necessary adjustments.

User-friendly Installation

IP09 series is a mountable gadget that can be fixed on a wall or a platform.

Detailed Reference Data

We provide detailed test reports that can help you customize solutions for projects.
