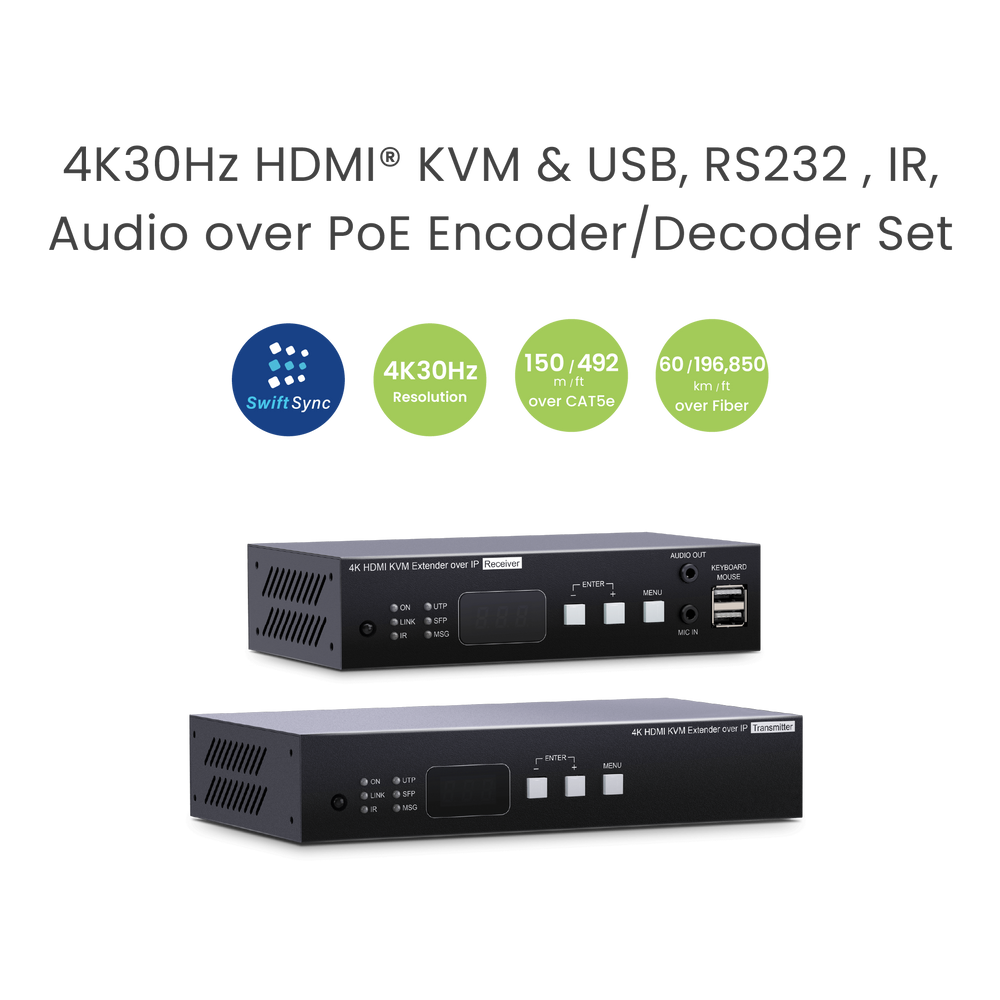

SwiftSync 4K HDMI® KVM & USB, RS232 , IR, Audio over PoE Encoder/Decoder Set - TAA Compliant
SKU: HKM02BP-4K
In Stock
- Regular price
- $630.00
- $630.00
- Regular price
- Sale price
- $690.00
- Unit price
- per
Couldn't load pickup availability
Contact us for project pricing or out-of-stock orders, and we’ll secure them quickly for you.
Description

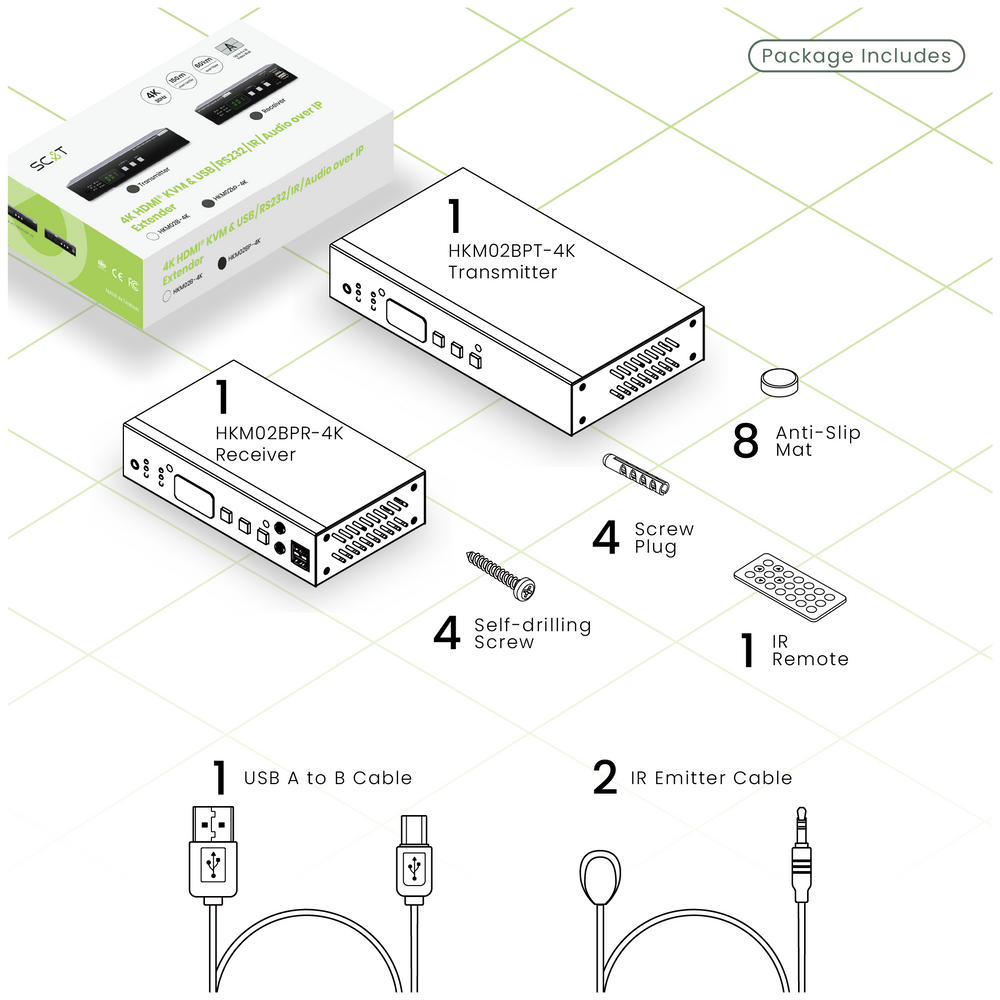

Package
Specification
FAQ
Download

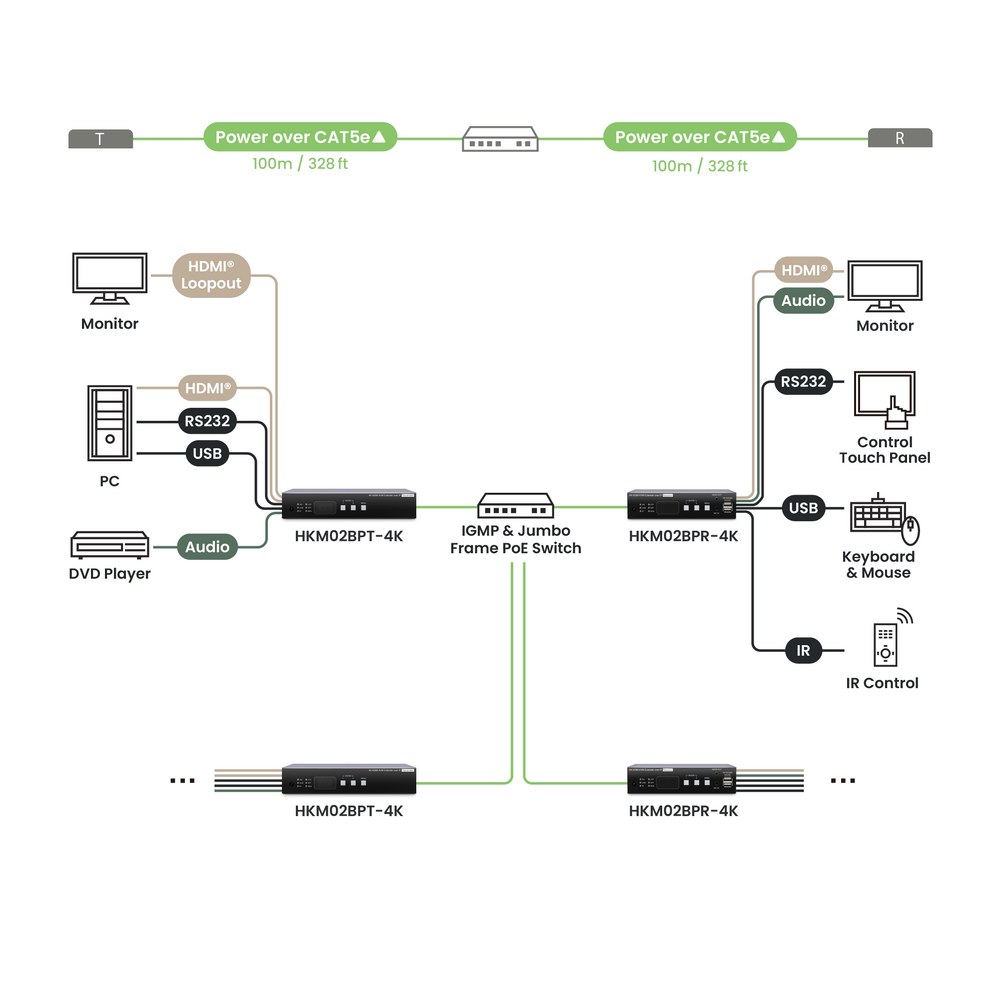

The HKM02BP-4K is a 4K30Hz, highly flexible HDMI® KVM Matrix system that supports a 1G PoE switch, designed to scale with your project. Available in 1080P (HKM02B), 4K30Hz (HKM02BP-4K), or 4K60Hz (HKM02BP-4K6G), it allows you to customize the exact number of Encoders and Decoders based on your site requirements. Featuring dual-medium support for both CAT5e/6 and fiber-optic transmission, it seamlessly adapts to any infrastructure. With integrated Mouse Roaming, operators can control multiple PCs by simply moving the cursor across monitor borders. It is the perfect all-in-one solution for Response/Control Centers, large-scale security, and mission-critical routing. Note: Different resolution versions are not compatible and cannot be mixed within the same system.
Features

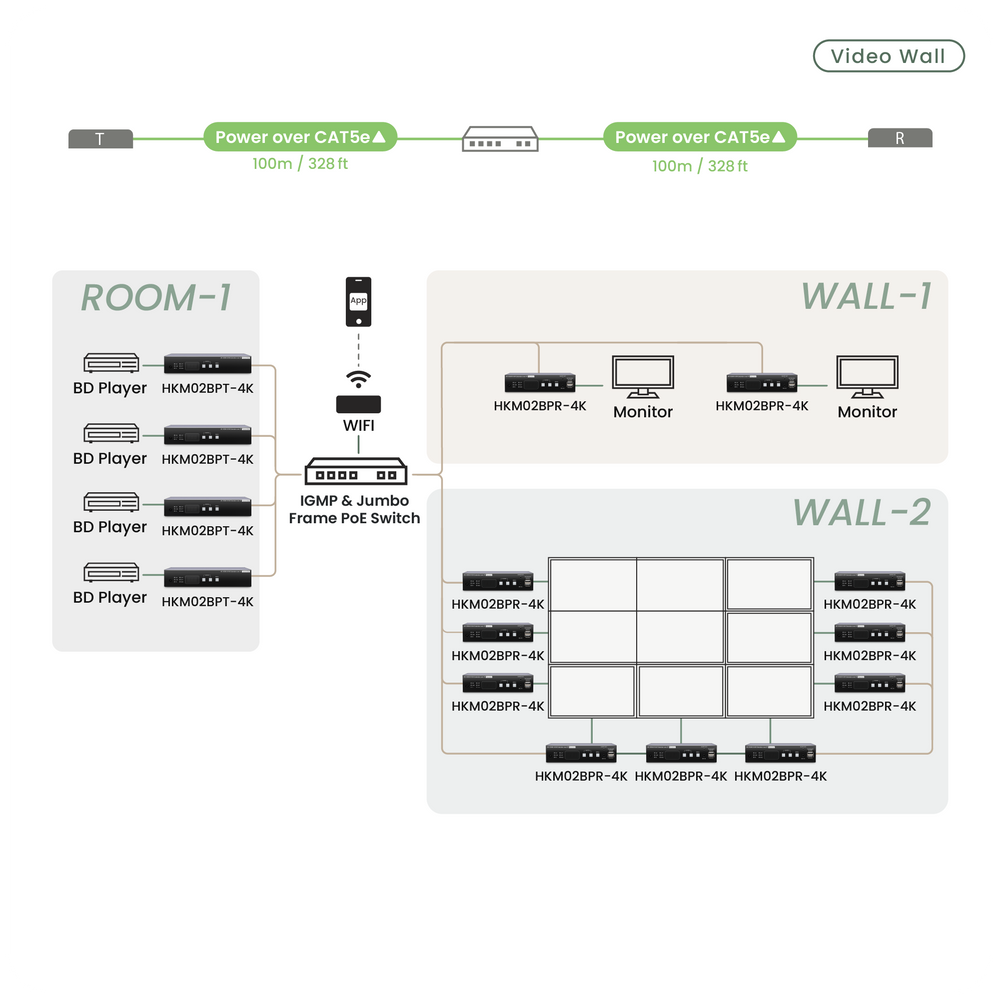

Flexible, Customizable Video Wall
Mouse Roaming for Seamless Multi-PC Control
Streamline your workflow with Mouse Roaming. Control multiple PCs using a single keyboard and mouse by simply moving the cursor across monitor borders. This hardware-based switching eliminates hotkeys, providing intuitive, real-time multitasking—perfect for enhancing efficiency in high-pressure Response Centers and mission-critical environments.
Multiple Control Options
Multiple control options to meet different project requirements.
RS232 for Customized Control
Use the RS232 command list provided in the SC&T user manual to build a customized control interface.
Long-Lasting Durability
Built-in circuit protection components to prevent the devices from surge spikes.
Ethernet Switch Requirement
At least using a Gigabit Ethernet switch that supports IGMP, and enabling Jumbo Frame is recommended.
When using more than one Ethernet switches to expand your AV system, please choose cables that can carry the total amount of data (Use a fiber cable when using 8 TX and 8 RX or more).
Optional 1U Rack-Mount Kit
For control rooms and AV racks, the 1U rack panel helps keep multiple SC&T devices aligned and easier to maintain.
- Designed for selected SC&T device sizes for cleaner rack organization
- Easy installation with included screw set and illustrated manual
- Standard 19" rack format, 1U height
SC&T AV over IP Setup Guide
SC&T AVoIP tutorial videos are divided into two parts: The first part is the basic setup video, and the second part will be an advanced video wall tutorial, in which we will cover advanced settings and software operations.
In this video, you will learn how to:
- Set up Jumbo Frame and IGMP Snooping on the switch
- Set the Tx channel via one of the following methods:
1. Use the device buttons/rotary switch
2. Enter the RS232 command using PuTTY/RS232 software
3. Use the remote control with the screen panel/RS232 software
By following the steps, you can easily set up the video matrix and control it using different methods, such as a remote control or software.
Benefits
- Multiple control options for different project requirements
- Budget-friendly 1G network architecture
- Supports both CAT cable and fiber for flexible distance planning
- Supports a wide range of USB 2.0 devices, such as USB flash drives and webcams
AV-over-IP Series Comparison Table
| ITEM NO. | HKM02BT-4K | HKM02BR-4K |
Support
| Compliance | HDCP 2.2, USB 1.1, USB 2.0 |
| Max. Video Resolution | 4K@30Hz 4:4:4 |
| Max. Transmission Distance | 150M over CAT5e Cable or Greater |
| Audio Format | 7.1 LPCM 192kHz, Dolby True HD, DTS-HD Master Audio, ATMOS, DTS:X |
| IR Support | 20-60kHz , ±45°, 5M |

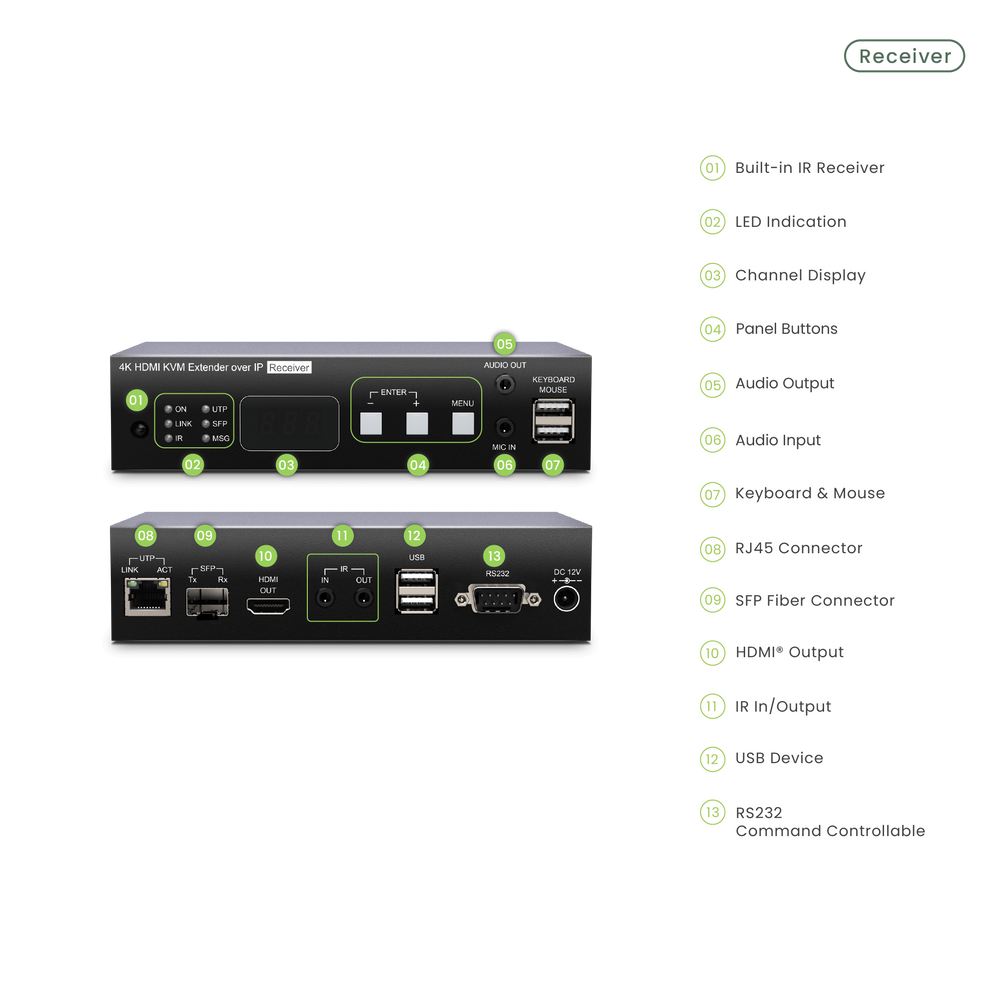

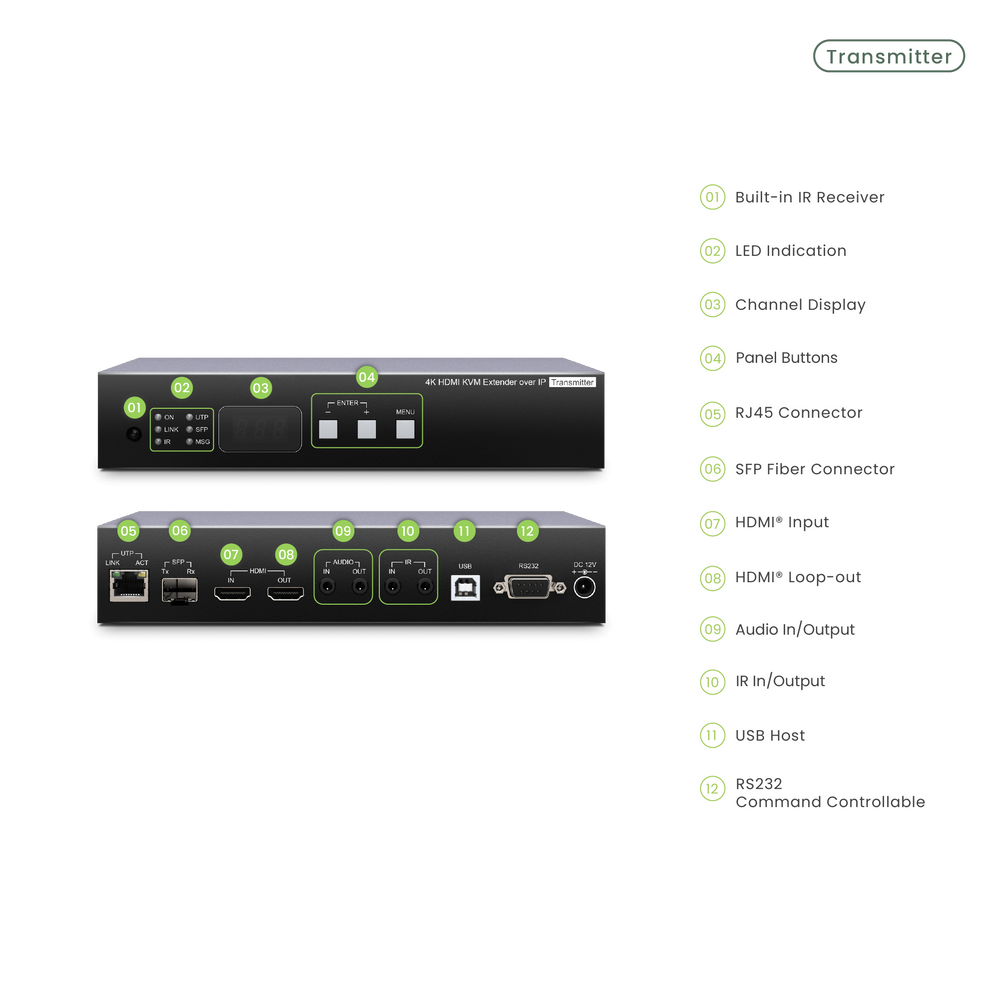

Ports & Interfaces
| Video Input | 1 x HDMI Type A | 1 x RJ45 |
| Video Output | 1 x RJ45 | HDMI Type A |
| Video Loop-out | 1 x HDMI Type A | - |
| Analog Audio Input | 1 x 3.5mm Stereo Phone Jack (Line In) | 1 x 3.5mm Mono Phone Jack (Mic In) |
| Analog Audio Output | 1 x 3.5mm Stereo Phone Jack (Line Out) | 1 x 3.5mm Stereo Phone Jack (Line Out) |
| USB Interface | 1 x USB Type B (USB 2.0) | 2 x USB Type A (USB 1.1) 2 x USB Type A (USB 2.0) |
| IR Interface | 1 x 3.5mm Stereo Phone Jack | 1 x 3.5mm Stereo Phone Jack |
| RS232 Interface | 1 x DB9 Female | 1 x DB9 Male |
| Link Interface | 1 x RJ45, 1 x SFP | 1 x RJ45, 1 x SFP |
Power
| Power Supply | DC 5V 1.5A | DC 5V 1.5A |
| Power Consumption | 600mA | 500mA |
Ambient Temperature
| Operation | 0 to 55℃ |
| Storage | -20 ~ 85℃ |
| Humidity | Up to 95% |
Physical Characteristic
| Dimensions | 210 x 123 x 40mm | 167 x 103 x 40mm |
| Weight | 680g | 500g |
Firmware/Software
| Release Date | Ver. | Release Note | File Name |
| October 16, 2025 | V1.1_2510161 | 2025/10/16 Release Version V7.5.14 Platform: ARM (CORE) Ethernet Link Speed: 100/1000Mbps --------------------------------- 01. Enhance USB compatibility 02. Fix a bug that a USB device, STREAM DECK MK.2, dones't work. 03. Support HDMI HD audio:Dolby MAT 04. Support repeat sequence in pronto hex format 05. Fix audio out (ISO out) device failure with "DF" error. 06. Support dynamic HDR/VSIF configuration without mode changed. Support HDR10+. 07. Deffer hotplug notification to avoid racing 08. Resolve HitiVision touch pannel crash 09. Fix can't roaming out from inactive screen. 10. Improves HDR (apple TV HDR screen saver issue) 11. Resolved that USB need long time to get back after network disconnect/connect in multicast mode ** This version is not compatible with any version lower then A7.4.XX, so we recommend updating both TX/RX to the latest firmware. |
HKM02BPT-4K_Firmware_V1.1_2510161.zip |
| October 16, 2025 | V1.1_2510161 | 2025/10/16 Release Version V7.5.14 Platform: ARM (CORE) Ethernet Link Speed: 100/1000Mbps --------------------------------- 01. Enhance USB compatibility 02. Fix a bug that a USB device, STREAM DECK MK.2, dones't work. 03. Support HDMI HD audio:Dolby MAT 04. Support repeat sequence in pronto hex format 05. Fix audio out (ISO out) device failure with "DF" error. 06. Support dynamic HDR/VSIF configuration without mode changed. Support HDR10+. 07. Deffer hotplug notification to avoid racing 08. Resolve HitiVision touch pannel crash 09. Fix can't roaming out from inactive screen. 10. Improves HDR (apple TV HDR screen saver issue) 11. Resolved that USB need long time to get back after network disconnect/connect in multicast mode ** This version is not compatible with any version lower then A7.4.XX, so we recommend updating both TX/RX to the latest firmware. |
HKM02BPR-4K_Firmware_V1.1_2510161.zip |
| June 3, 2025 | V1.0_2506031 | 2025/05/26 Release Version V3.07 Platform: ARM (Nuvoton NUC100) RS232 Baud Rate: 115200 bps ---------------------------------- 01.Fix RS232 command: CHANNEL x NAME "yyy" get error message and cannot be set |
HKM02BPT-4K_Firmware_V1.0_2506031.zip |
| June 3, 2025 | V1.0_2506031 | 2025/05/26 Release Version V3.07 Platform: ARM (Nuvoton NUC100) RS232 Baud Rate: 115200 bps ---------------------------------- 01.Fix RS232 command: CHANNEL x NAME "yyy" get error message and cannot be set |
HKM02BPR-4K_Firmware_V1.0_2506031.zip |
| August 6, 2024 | V1.0_2408061 | 2024/08/06 Release Version V3.05 Platform: ARM (Nuvoton NUC100) RS232 Baud Rate: 115200 bps ------------------------------------------------------------------------------------------------------------ 01. Fixed USB stability issue 02. When saving the VIDEOWALL setting parameters, save them together with CHANNEL, GROUP, PARTY, and apply them when loading VIDEOWALL. |
HKM02BPT-4K_Firmware_V1.0_2408061.zip |
| August 6, 2024 | V1.0_2408061 | 2024/08/06 Release Version V3.05 Platform: ARM (Nuvoton NUC100) RS232 Baud Rate: 115200 bps ------------------------------------------------------------------------------------------------------------ 01. Fixed USB stability issue 02. When saving the VIDEOWALL setting parameters, save them together with CHANNEL, GROUP, PARTY, and apply them when loading VIDEOWALL. |
HKM02BPR-4K_Firmware_V1.0_2408061.zip |
