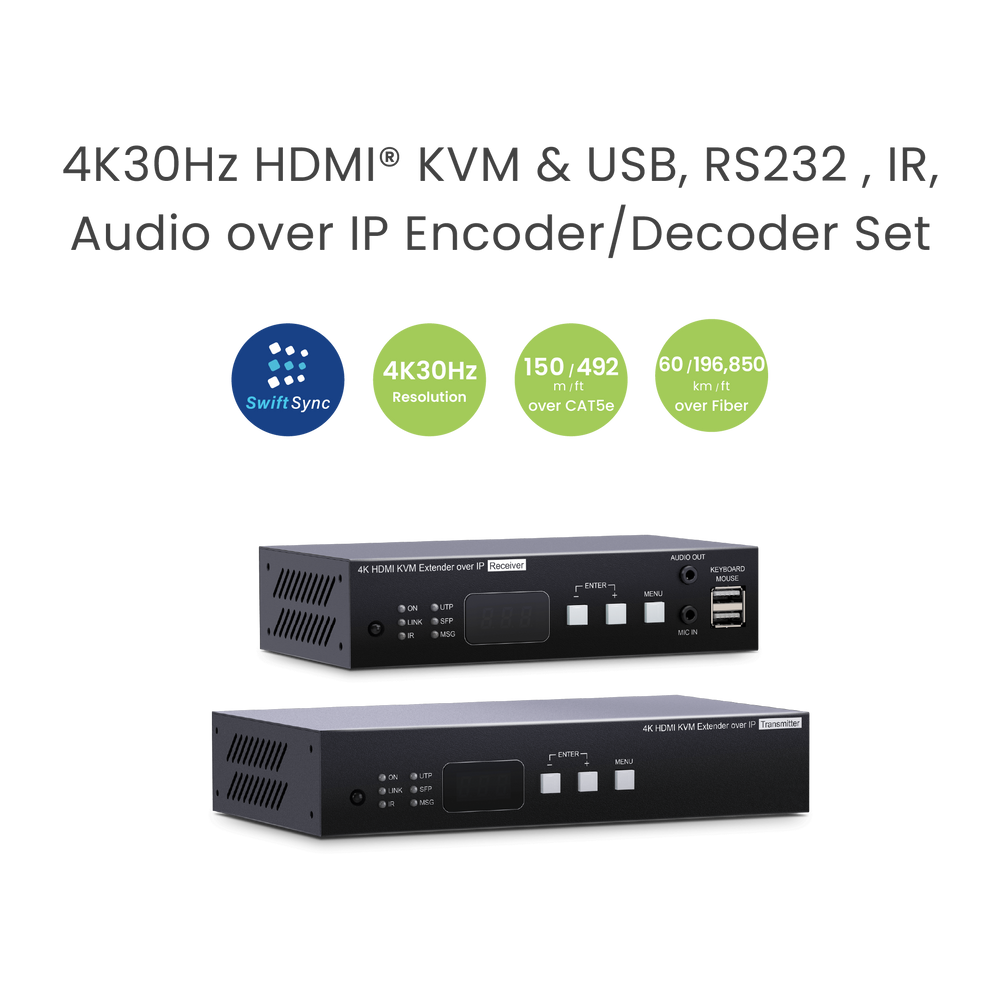

SwiftSync 4K HDMI® KVM & USB, RS232 , IR, Audio over IP Encoder/Decoder Set - TAA Compliant

SKU: HKM02B-4K

In Stock

Regular price
$585.00
$585.00
Regular price
Sale price
$650.00
Unit price
 per

Contact us for project pricing or out-of-stock orders, and we’ll secure them quickly for you.

  • Resolution up to 4K30Hz 4:4:4.
  • Signal extension up to 150m over CAT5e (or greater), 20km over fiber optic cable.
  • Works with 1G PoE Ethernet switches for HDMI® extension, distribution, switching, and matrix.
  • Built-in loop out, an extra local HDMI® display at the Encoder side.
  • Built-in 4 USB ports for remote control.
  • Supports up to 8 x 16 video wall.
  • Supports video scaler, 4K30Hz to 1080p/ 1080p to 4K30Hz.
  • Supports HDMI® audio embedding and extraction function.
  • Supports USB, full-duplex RS232, bi-directional IR, analog audio transmission.
  • Supports RS232 signal distribution.
  • Managed via Windows-based software, Android/iOS APP, Web GUI, IR remote, panel buttons, Telnet API, RS232 console.
  • TAA-compliant for government procurement.

Discounted UPS Shipping Rates

45 Day Money Back Policy

2 Years Warranty

Lifetime Customer Support

Description

Package

Specification

FAQ

Download

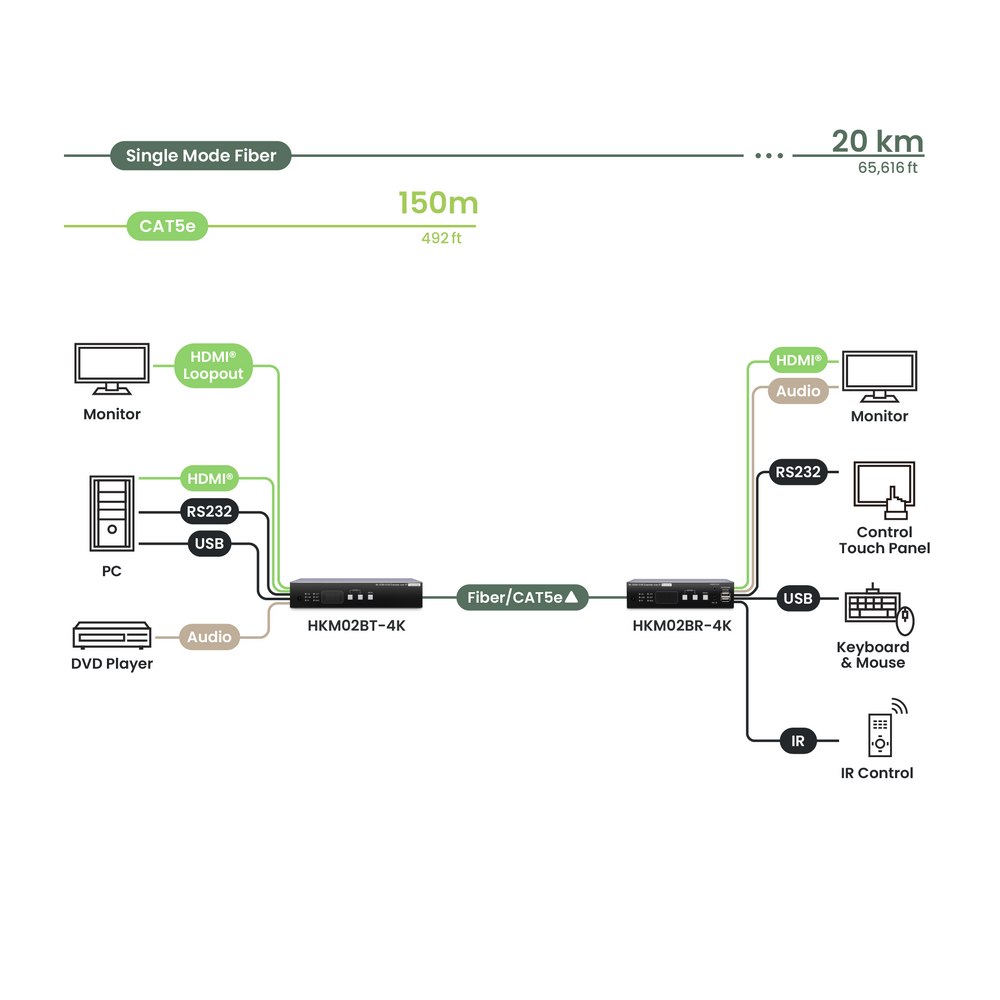

Connection Diagram

Extending

Matrix Switching

Switching

Distributing

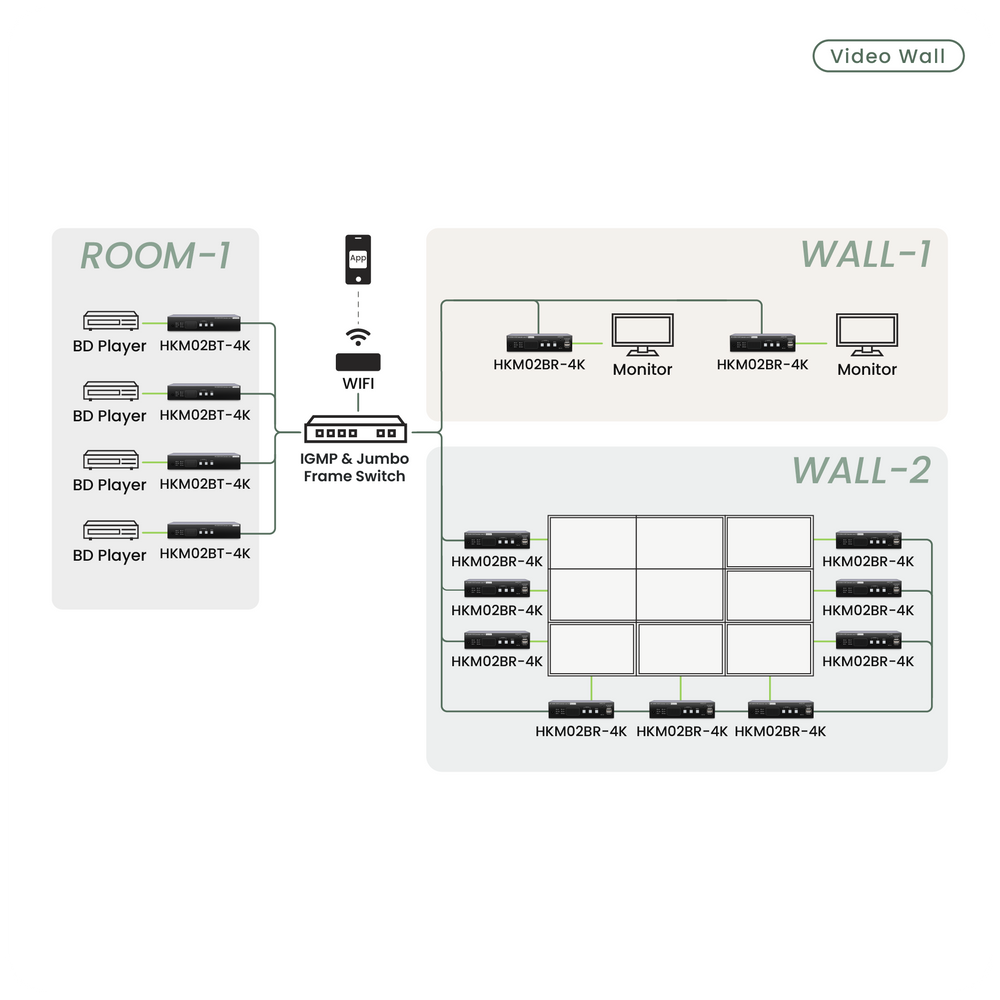

TV Wall

Overview

The HKM02B-4K is a 4K30Hz, highly flexible HDMI® KVM Matrix system that supports a 1G Ethernet switch designed to scale with your project. Available in 1080P (HKM02B), 4K30Hz (HKM02B-4K), or 4K60Hz (HKM02B-4K6G), it allows you to customize the exact number of Encoders and Decoders based on your site requirements. Featuring dual-medium support for both CAT5e/6 and fiber-optic transmission, it seamlessly adapts to any infrastructure. With integrated Mouse Roaming, operators can control multiple PCs by simply moving the cursor across monitor borders. It is the perfect all-in-one solution for Response/Control Centers, large-scale security, and mission-critical routing.

Note: Different resolution versions are not compatible and cannot be mixed within the same system.

HDMI over IP VGA/DVI over IP
Image Image Image Image Image Image
HKM02BP-4K6G HKM02B-4K6G HKM02BP-4K HKM02B-4K HKM02B VDKM02B
Resolution Image Image Image Image Image Image
PoE over IP Image N/A Image N/A N/A N/A
Audio Extraction &
Embedding 		Image Image Image Image Image Image
IR/RS232 Control Image Image Image Image Image Image
Fiber Module Image Image Image Image N/A N/A



Features

Flexible, Customizable Video Wall

Mouse Roaming for Seamless Multi-PC Control

Streamline your workflow with Mouse Roaming. Control multiple PCs using a single keyboard and mouse by simply moving the cursor across monitor borders. This hardware-based switching eliminates hotkeys, providing intuitive, real-time multitasking—perfect for enhancing efficiency in high-pressure Response Centers and mission-critical environments.

Multiple Control Options

Multiple control options to meet different project requirements.

RS232 for Customized Control

Use the RS232 command list provided in the SC&T user manual to build a customized control interface.

Long-Lasting Durability

Built-in circuit protection components to prevent the devices from surge spikes.



Ethernet Switch Requirement

Use at least a Gigabit Ethernet switch that supports IGMP and enable Jumbo Frame.

Resolution

Bandwidth (Mbps)

3840x2160(4K)

146~268

1920x1080 (1080p)

80~210

1280x720(720P)

112~177

1600x1200 (UXGA)

57~105

1280x1024 (SXGA)

79~150

1024x768(XGA)

72~120

800x600 (SVGA)

49~82

640x480 (VGA)

29~56

When expanding your AV system with multiple Ethernet switches, choose cables that can handle the total data load (use fiber cables for setups with 8 TX and 8 RX or more).



Optional 1U Rack-Mount Kit

For control rooms and AV racks, the 1U rack panel helps keep multiple SC&T devices aligned and easier to maintain.

  • Designed for selected SC&T device sizes for cleaner rack organization
  • Easy installation with included screw set and illustrated manual
  • Standard 19" rack format, 1U height

View Rack Kit



SC&T AV over IP Setup Guide

SC&T provides comprehensive step-by-step video tutorials for users and integrators to install our AVoIP system. In addition, our professional FAE team can assist with your installation and consultation online.



Benefits

  • Multiple control options for different project requirements
  • Budget-friendly 1G network architecture
  • Supports both CAT cable and fiber for flexible distance planning
  • Supports a wide range of USB 2.0 devices, such as USB flash drives and webcams



AV-over-IP Series Comparison Table

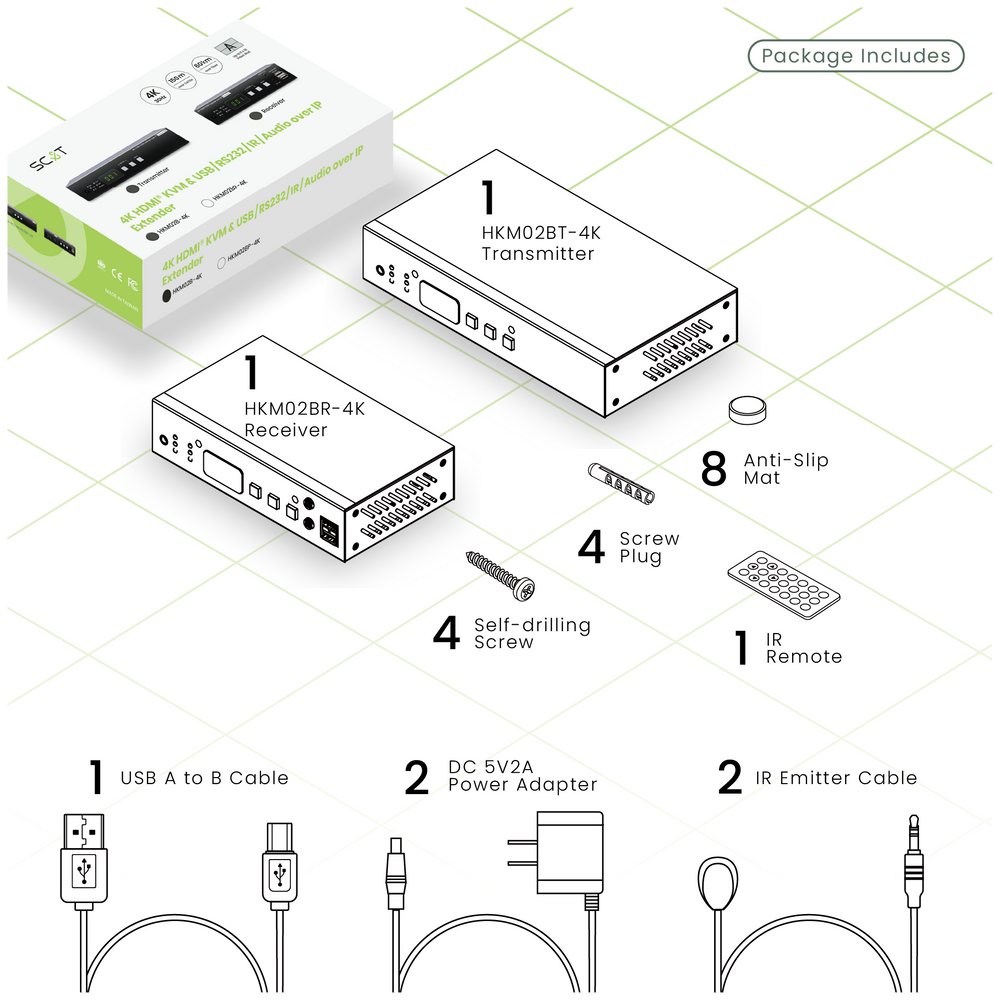

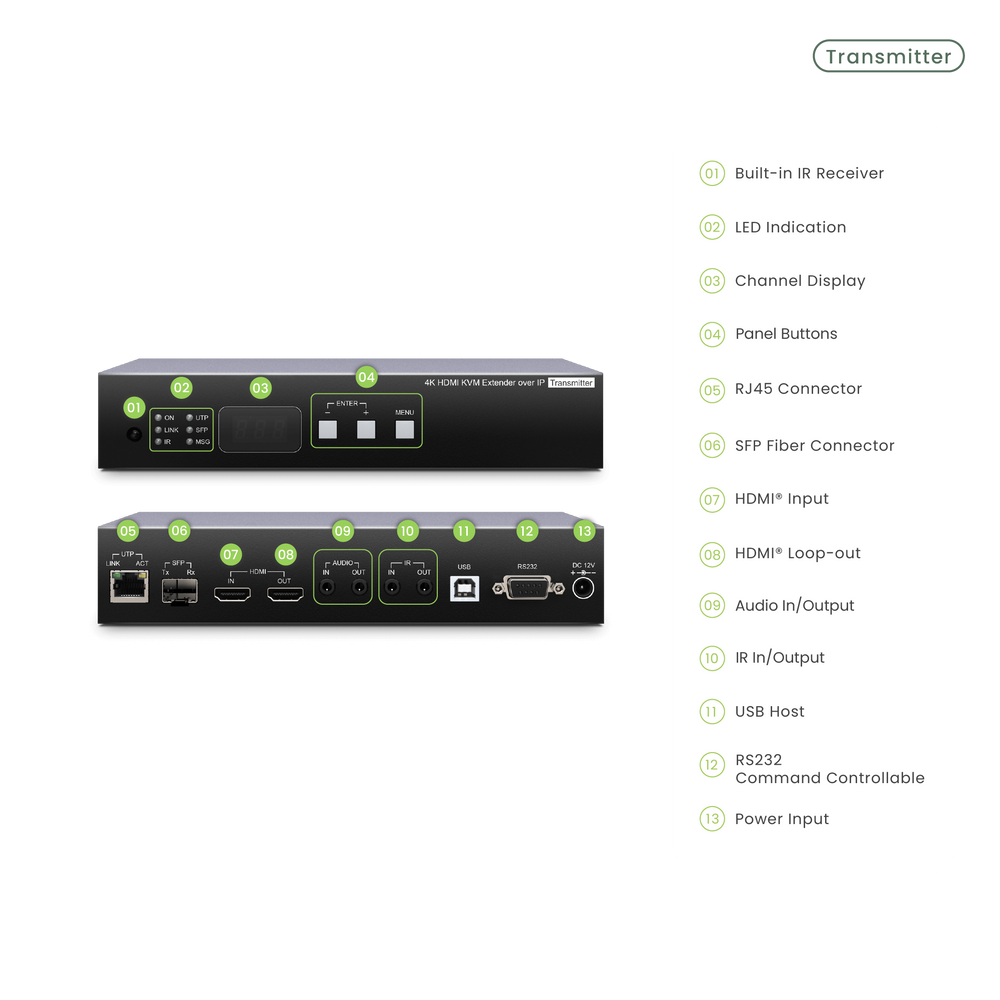

HKM02BT-4K Package Includes:

  • Transmitter x 1 pcs
  • USB A to B cable x 1 pcs
  • IR emitter cable x 1 pcs
  • DC 12V 1.5A power adapter x 1 pcs

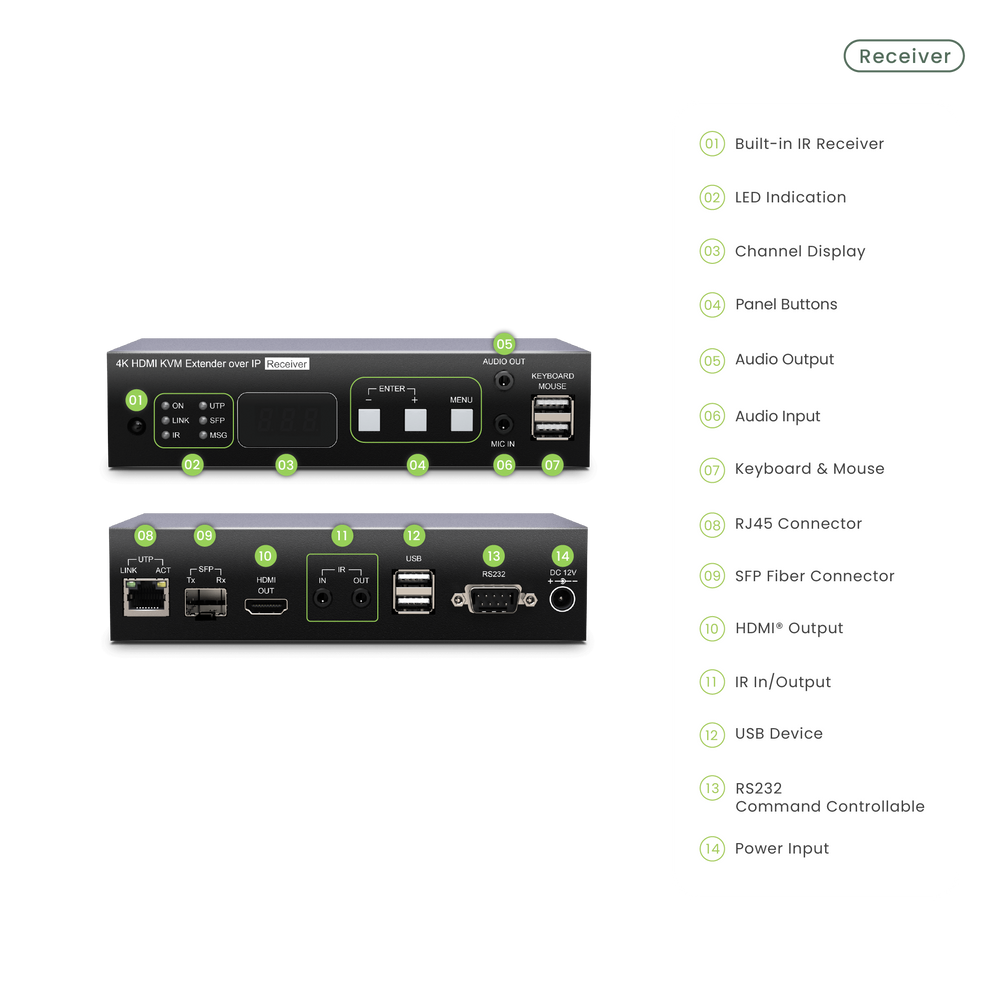

HKM02BR-4K Package Includes:

  • Receiver x 1 pcs
  • IR emitter cable x 1 pcs
  • IR remote control x1 pcs
  • DC 12V 1.5A power adapter x 1 pcs
ITEM NO. HKM02BT-4K HKM02BR-4K

Support

Compliance HDCP 2.2, USB 1.1, USB 2.0
Max. Video Resolution 4K@30Hz 4:4:4
Max. Transmission Distance 150M over CAT5e Cable or Greater
Audio Format 7.1 LPCM 192kHz, Dolby True HD, DTS-HD Master Audio, ATMOS, DTS:X
IR Support 20-60kHz , ±45°, 5M

Ports & Interfaces

Video Input 1 x HDMI Type A 1 x RJ45
Video Output 1 x RJ45 HDMI Type A
Video Loop-out 1 x HDMI Type A -
Analog Audio Input 1 x 3.5mm Stereo Phone Jack (Line In) 1 x 3.5mm Mono Phone Jack (Mic In)
Analog Audio Output 1 x 3.5mm Stereo Phone Jack (Line Out) 1 x 3.5mm Stereo Phone Jack (Line Out)
USB Interface 1 x USB Type B (USB 2.0) 2 x USB Type A (USB 1.1)
2 x USB Type A (USB 2.0)
IR Interface 1 x 3.5mm Stereo Phone Jack 1 x 3.5mm Stereo Phone Jack
RS232 Interface 1 x DB9 Female 1 x DB9 Male
Link Interface 1 x RJ45, 1 x SFP 1 x RJ45, 1 x SFP

Power

Power Supply DC 12V 1.5A DC 12V 1.5A
Power Consumption 600mA 500mA

Ambient Temperature

Operation 0 to 55℃
Storage -20 ~ 85℃
Humidity Up to 95%

Physical Characteristic

Dimensions 210 x 123 x 40mm 167 x 103 x 40mm
Weight 680g 500g

Can the switch be shared with the office/network LAN?

No. Video traffic consumes significant network bandwidth. Since the HKM02B series delivers high image quality with low compression, we recommend running the HKM02B series on a dedicated network/subnet for best performance.

Does the system require a specific switch brand?

No specific brand is required. However, the switch must support IGMP Snooping and Jumbo Frames. Common brands used by our system integrator partners include Zyxel, TP-Link, PLANET, and NETGEAR.

How can I find the factory default IP address?

A label on the bottom of the unit lists the factory default IP address.

Will there be a black screen during switching?

Yes. When switching, the HKM02B series will show a brief black screen.

How do I configure the system?

You can configure the system without a PC using the front panel, IR remote, or the mobile app. Please refer to SC&T’s configuration videos. You can also configure and integrate with a control system via RS-232 by using the command list to build a customized control interface.

User Manual

HKM02B-4K_User Manual_EN_V1.0_2010160

CAD

HKM02BT-4K_CAD_EN_V1.0_2010160

HKM02BR-4K_CAD_EN_V1.0_2010160

Firmware/Software

Release Date Ver. Release Note File Name
November 16, 2025 V1.1_2510161
▸ View Release Note
2025/10/16 Release Version V7.5.14
Platform: ARM (CORE)
Ethernet Link Speed: 100/1000Mbps
------------------------------------------------------------------------------------------------------------
01. Enhance USB compatibility
02. Fix a bug that a USB device, STREAM DECK MK.2, dones't work.
03. Support HDMI HD audio:Dolby MAT
04. Support repeat sequence in pronto hex format
05. Fix audio out (ISO out) device failure with "DF" error.
06. Support dynamic HDR/VSIF configuration without mode changed. Support HDR10+.
07. Deffer hotplug notification to avoid racing
08. Resolve HitiVision touch pannel crash
09. Fix can't roaming out from inactive screen.
10. Improves HDR (apple TV HDR screen saver issue)
11. Resolved that USB need long time to get back after network disconnect/connect in multicast mode
** This version is not compatible with any version lower then A7.4.XX, so we recommend updating both TX/RX to the latest firmware.
 HKM02BT-4K_Firmware_V1.1_2510161.zip
October 16, 2025 V1.1_2510161
▸ View Release Note
2025/10/16 Release Version V7.5.14
Platform: ARM (CORE)
Ethernet Link Speed: 100/1000Mbps
------------------------------------------------------------------------------------------------------------
01. Enhance USB compatibility
02. Fix a bug that a USB device, STREAM DECK MK.2, dones't work.
03. Support HDMI HD audio:Dolby MAT
04. Support repeat sequence in pronto hex format
05. Fix audio out (ISO out) device failure with "DF" error.
06. Support dynamic HDR/VSIF configuration without mode changed. Support HDR10+.
07. Deffer hotplug notification to avoid racing
08. Resolve HitiVision touch pannel crash
09. Fix can't roaming out from inactive screen.
10. Improves HDR (apple TV HDR screen saver issue)
11. Resolved that USB need long time to get back after network disconnect/connect in multicast mode
** This version is not compatible with any version lower then A7.4.XX, so we recommend updating both TX/RX to the latest firmware.
 HKM02BR-4K_Firmware_V1.1_2510161.zip
June 3, 2025 V1.0_2506031
▸ View Release Note
2025/05/26 Release Version V3.07
Platform: ARM (Nuvoton NUC100)
RS232 Baud Rate: 115200 bps
----------------------------------
01.Fix RS232 command: CHANNEL x NAME "yyy" get error message and cannot be set
 HKM02BT_Firmware_V1.0_2506031.zip
June 3, 2025 V1.0_2506031
▸ View Release Note
2025/05/26 Release Version V3.07
Platform: ARM (Nuvoton NUC100)
RS232 Baud Rate: 115200 bps
------------------------------------------------------------------------------------------------------------
01.Fix RS232 command: CHANNEL x NAME "yyy" get error message and cannot be set
 HKM02BR_Firmware_V1.0_2506031.zip
August 6, 2024 V1.0_2408061
▸ View Release Note
2024/08/06 Release Version V3.05
Platform: ARM (Nuvoton NUC100)
RS232 Baud Rate: 115200 bps
01. Fixed USB stability issue
02. When saving the VIDEOWALL setting parameters, save them together with CHANNEL, GROUP, PARTY, and apply them when loading VIDEOWALL.
 HKM02BT-4K_Firmware_V1.0_2408061.zip
August 6, 2024 V1.0_2408061
▸ View Release Note
2024/08/06 Release Version V3.05
Platform: ARM (Nuvoton NUC100)
RS232 Baud Rate: 115200 bps
01. Fixed USB stability issue
02. When saving the VIDEOWALL setting parameters, save them together with CHANNEL, GROUP, PARTY, and apply them when loading VIDEOWALL.
 HKM02BR-4K_Firmware_V1.0_2408061.zip
June 6, 2023 V1.0_2306061
▸ View Release Note
2023/06/06 Release Version V3.02
Platform: ARM (Nuvoton NUC100)
RS232 Baud Rate: 115200 bps
01. Fixed the problem that Aux Baudrade cannot be set correctly.
02. Fixed the problem when saving the parameters of VIDEOWALL causing RS232 overflow and crash.
 HKM02BT-4K_Firmware_V1.0_2306061.zip
June 6, 2023 V1.0_2306061
▸ View Release Note
2023/06/06 Release Version V3.02
Platform: ARM (Nuvoton NUC100)
RS232 Baud Rate: 115200 bps
01. Fixed the problem that Aux Baudrade cannot be set correctly.
02. Fixed the problem when saving the parameters of VIDEOWALL causing RS232 overflow and crash.
 HKM02BR-4K_Firmware_v1.0_2306061.zip
October 5, 2020 V1.0_2010160
▸ View Release Note
2020/10/05 Release Version V2.97
Platform: ARM (Nuvoton NUC100)
RS232 Baud Rate: 115200 bps
1. Adjust RS232 channel switch command delay time to avoid RS232 service crash
2. Fix Keypad setting need reboot to take effect problem

2020/08/24 Release Version V2.96
Platform: ARM (Nuvoton NUC100)
RS232 Baud Rate: 115200 bps
1. When set to DHCP mode, reboot automatically if not get IP address from DHCP server after 30 seconds

2019/05/19 Release Version V7.3.1
Platform: ARM (CORE)
Ethernet Link Speed: 100/1000Mbps
1. Add new video pass-through mode, strict mode.
2. Fix black screen issue while switch between the same resolution after video wall setting changed.
 HKM02BT-4K_Firmware_V1.0_2010160.zip
October 5, 2020 V1.0_2010160
▸ View Release Note
2020/10/05 Release Version V2.97
Platform: ARM (Nuvoton NUC100)
RS232 Baud Rate: 115200 bps
1. Adjust RS232 channel switch command delay time to avoid RS232 service crash
2. Fix Keypad setting need reboot to take effect problem

2020/08/24 Release Version V2.96
Platform: ARM (Nuvoton NUC100)
RS232 Baud Rate: 115200 bps
1. When set to DHCP mode, reboot automatically if not get IP address from DHCP server after 30 seconds

2019/05/19 Release Version V7.3.1
Platform: ARM (CORE)
Ethernet Link Speed: 100/1000Mbps
1. Add new video pass-through mode, strict mode.
2. Fix black screen issue while switch between the same resolution after video wall setting changed.
 HKM02BR-4K_Firmware_V1.0_2010160.zip
