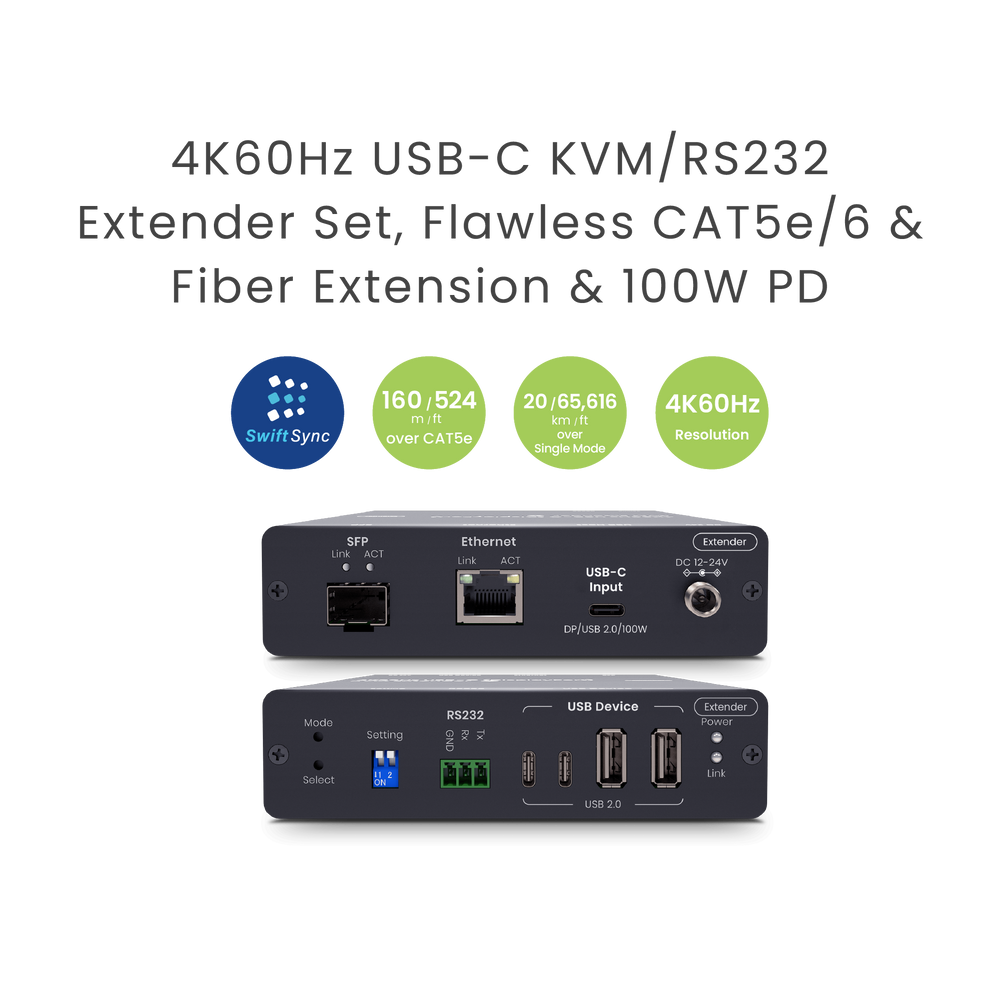

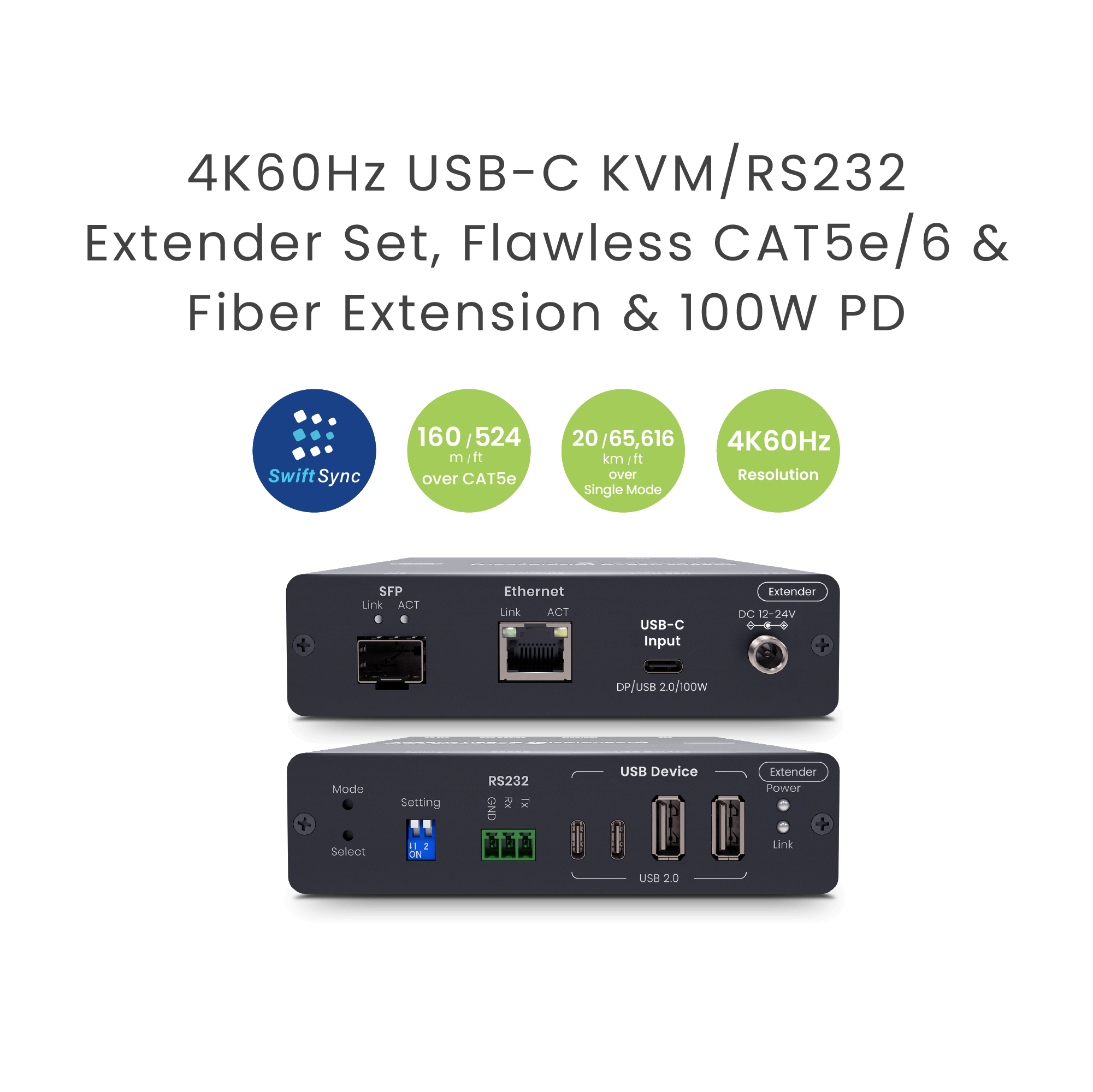

SwiftSync 4K60Hz USB-C (DP Alt Mode)/RS232/ KVM CAT5e/6 / Fiber Optic Extender (100W PD 3.0)

Product Overview

The UKM01P-4K6G is a USB-C (DP Alt Mode) KVM extender for long-distance AV transmission over CAT5e/6 or fiber. Supporting 4K60 video, USB KVM, RS232, PoC, and up to 100W USB PD, it simplifies deployment for remote workstations and professional AV systems.

Consolidated AV, Power, and Control over a Single Cable

USB-C (DP Alt Mode) with 4K60Hz Transmission

Supports USB-C workstations, laptops, and tablets with DP Alt Mode and USB 2.0. Delivers 4K60Hz video with HDR and Dolby Vision pass-through, together with USB peripheral control.

Flexible CAT5e/6 & Fiber Deployment

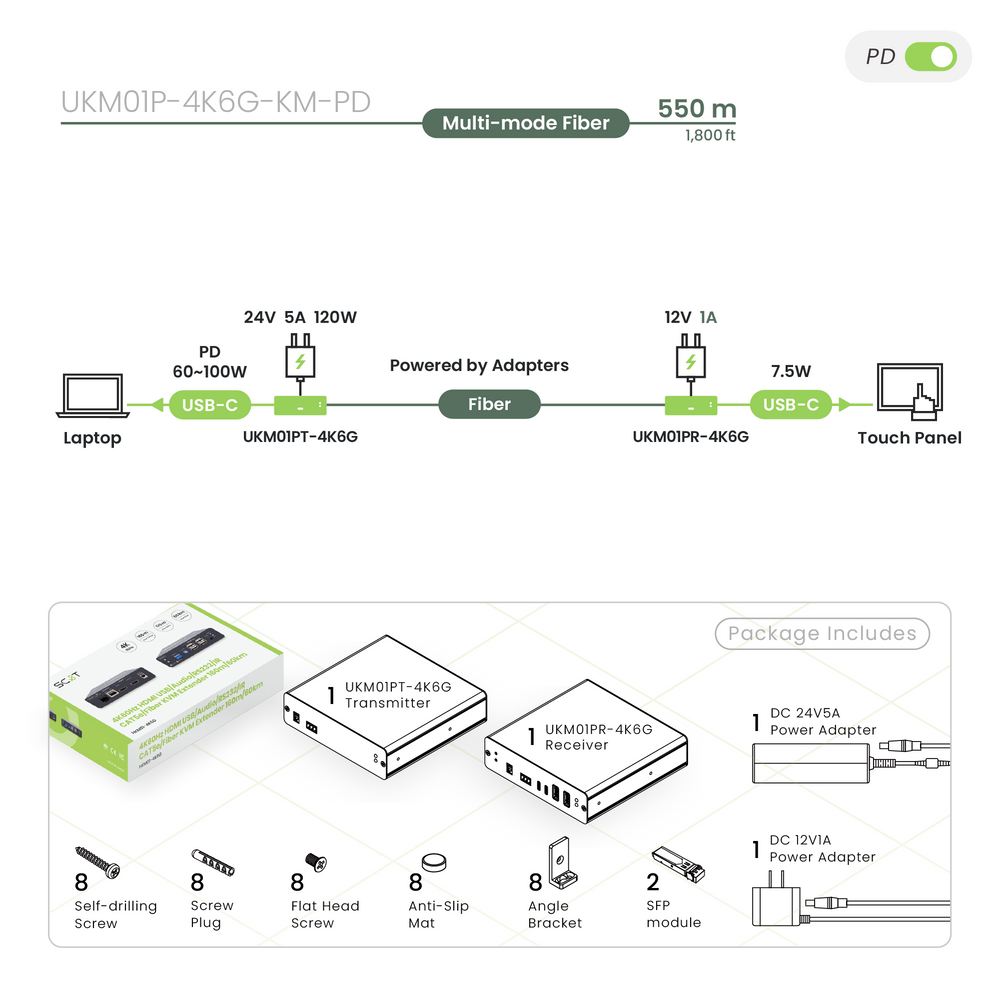

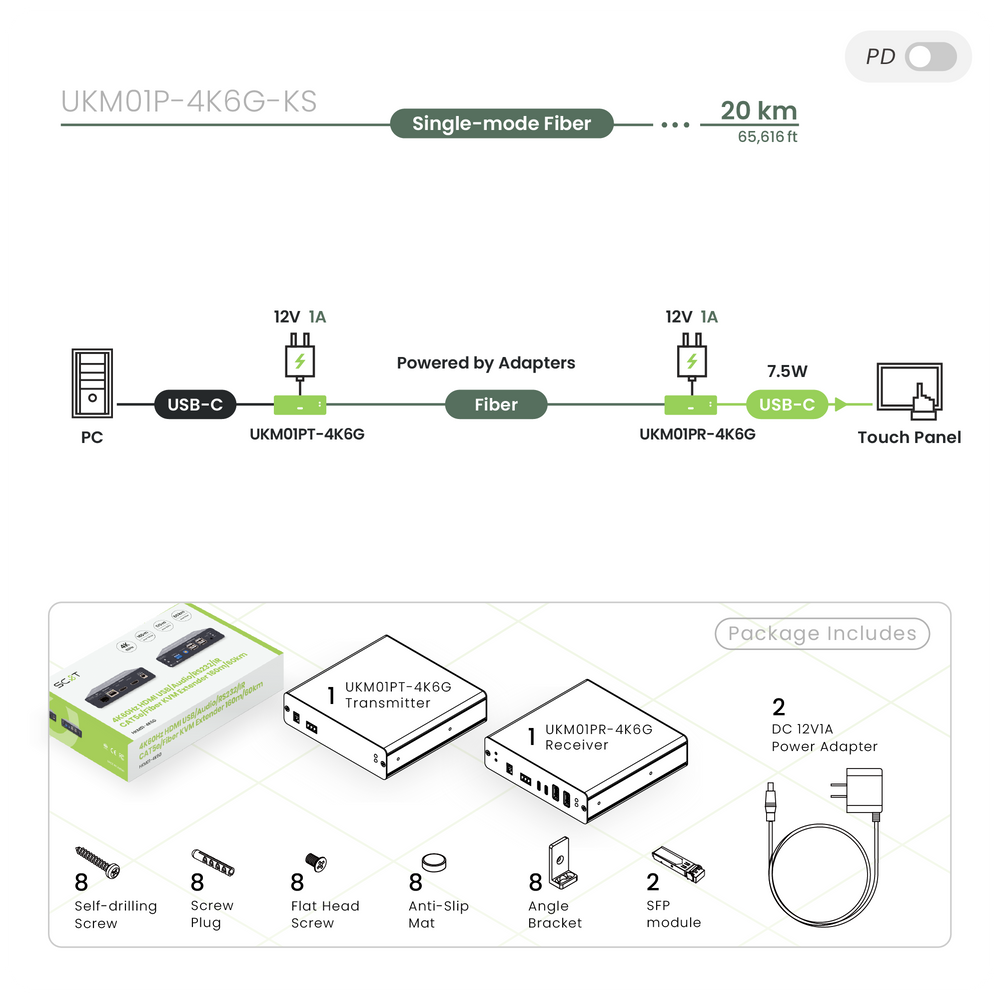

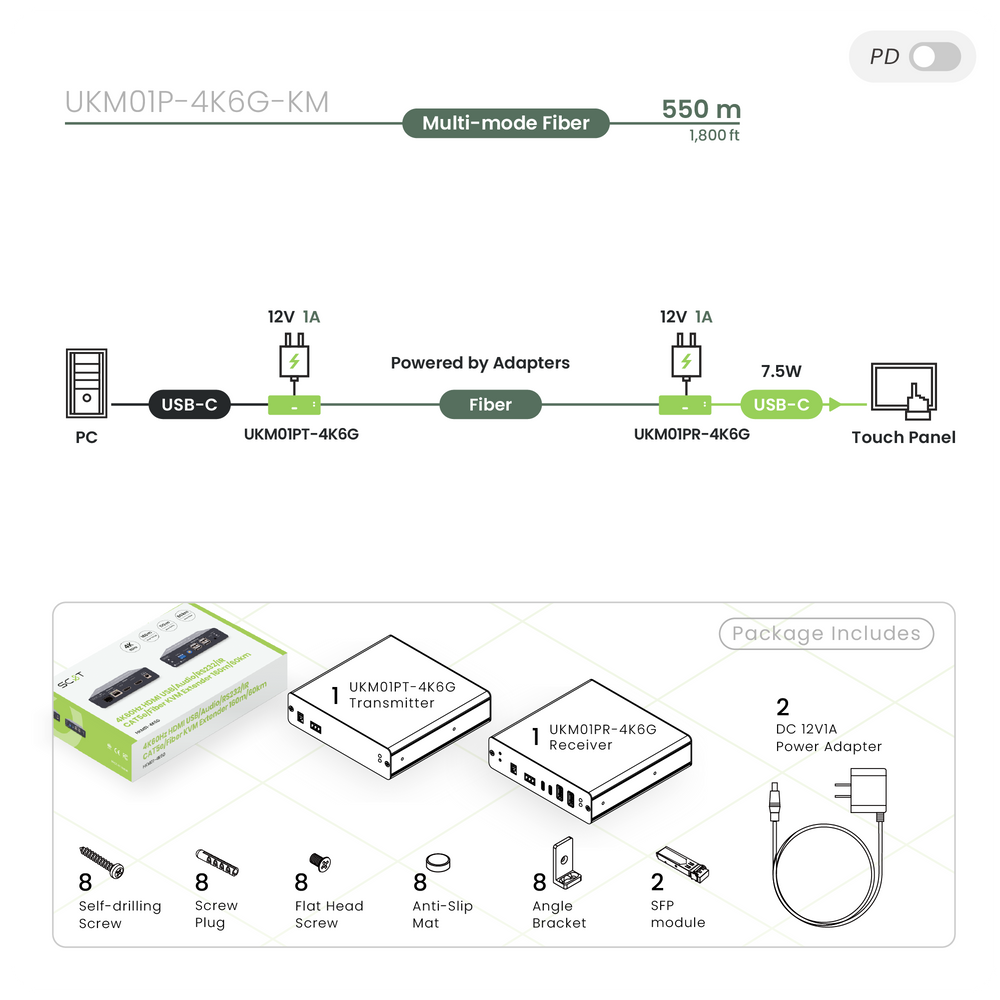

Extends signals up to 160m over CAT5e/6 with PoC and USB PD support, or up to 20km over single-mode fiber using an SFP module.

(Note: Fiber does not transmit power; external power is required at the corresponding end.)

SwiftSync Technology: Near-Zero-Lantecy KVM

SwiftSync maintains responsive keyboard, mouse, and USB operation with latency of less than one frame over CAT5e/6.

PoC and Up to 100W USB PD 3.0

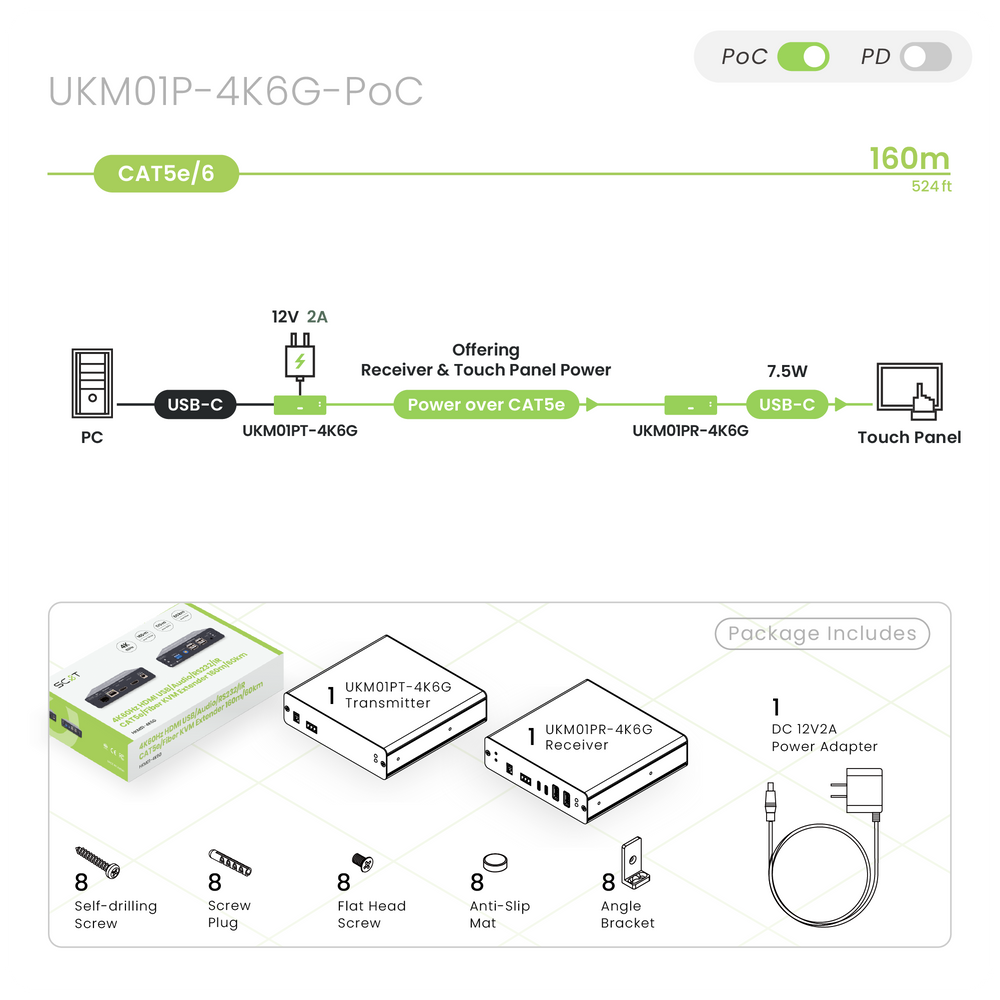

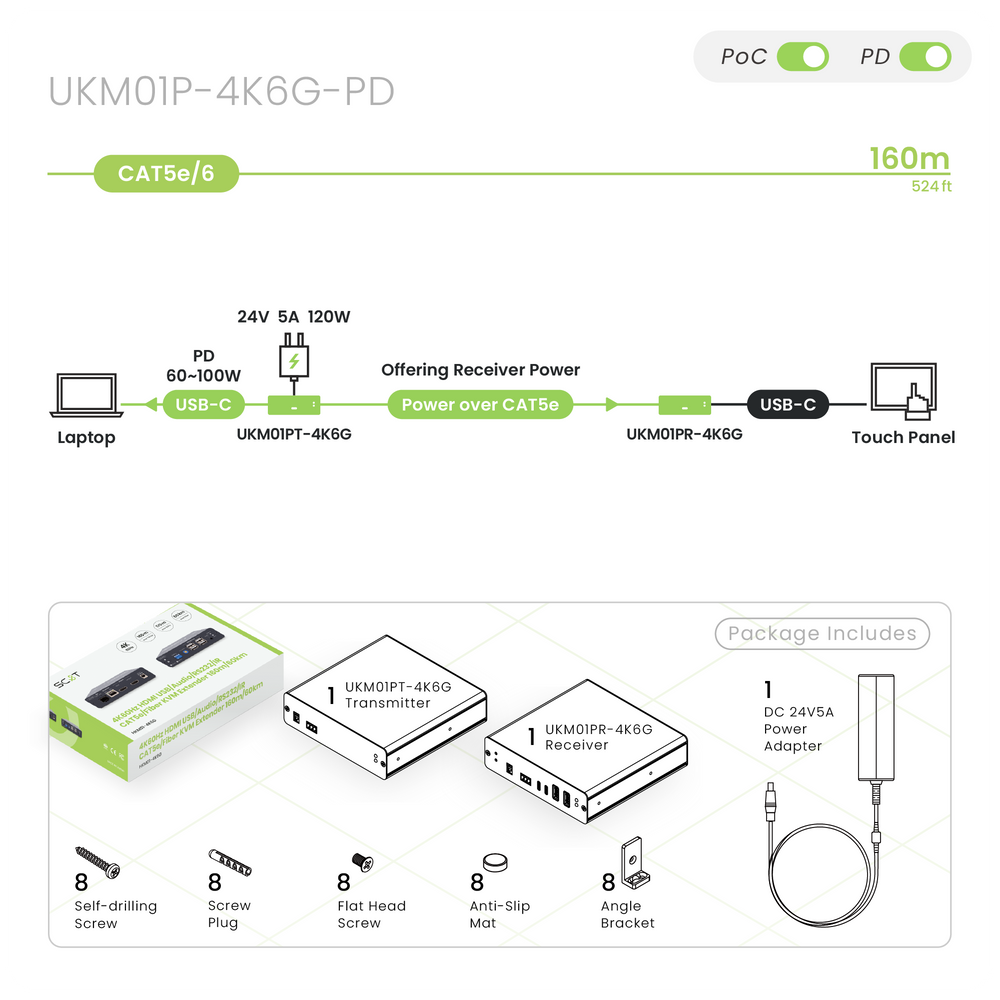

Power over Cable (PoC) powers both units from a single adapter connected at either end. A 24V/5A adapter at the transmitter also enables up to 100W USB PD 3.0 charging.

Full-Duplex RS232 Control

Extends full-duplex RS232 signals up to 115200bps for remote control of industrial equipment, projectors, and matrix switchers.

Cross-Platform HDMI System Integration

Compatible with the SC&T HKM01-4K6G series, allowing USB-C and HDMI transmitters or receivers to be combined for different system requirements.

• HDMI Input with USB-C KVM Output
  Pair the HKM01T-4K6G with the UKM01PR-4K6G to extend HDMI video and USB peripherals, including touch panels, cameras, and flash drives.

• USB-C Input with HDMI Output
  Pair the UKM01PT-4K6G with the HKM01R-4K6G to output HDMI video, independent audio, USB KM, and IR control at the remote end.

Application Environments

Industrial Control

Enables operators to control remote computers, machinery, and automation systems from a secure control room with near-zero-latency video and KVM transmission.

Boardrooms

A single USB-C connection carries 4K video, USB peripheral control, and laptop charging. It simplifies laptop and room AV integration.

Video Bar System Integration

• HDMI Video Transmission (Laptop → Display)
  Laptop video is transmitted from the UKM01PT-4K6G to the HKM01R-4K6G, which outputs HDMI to the display. The transmitter can also charge the laptop through USB PD.

• USB Peripheral Feed (Video Bar → Laptop)
  Camera and audio signals from the Video Bar return through the HKM01R-4K6G to the Transmitter (UKM01PT-4K6G), allowing users to access the room’s AV devices directly.

Quick Specification

• Max. Video Resolution: 4K60Hz
• Max. Transmission Distance: 160m over CAT5e/6, 20km over SFP Fiber Optic.
• Video Input: 1 x USB Type-C (DP ALT)
• Video Output: 1 x USB Type-C (DP ALT)
• Other Function: PD 3.0 (100W)

Setup Steps

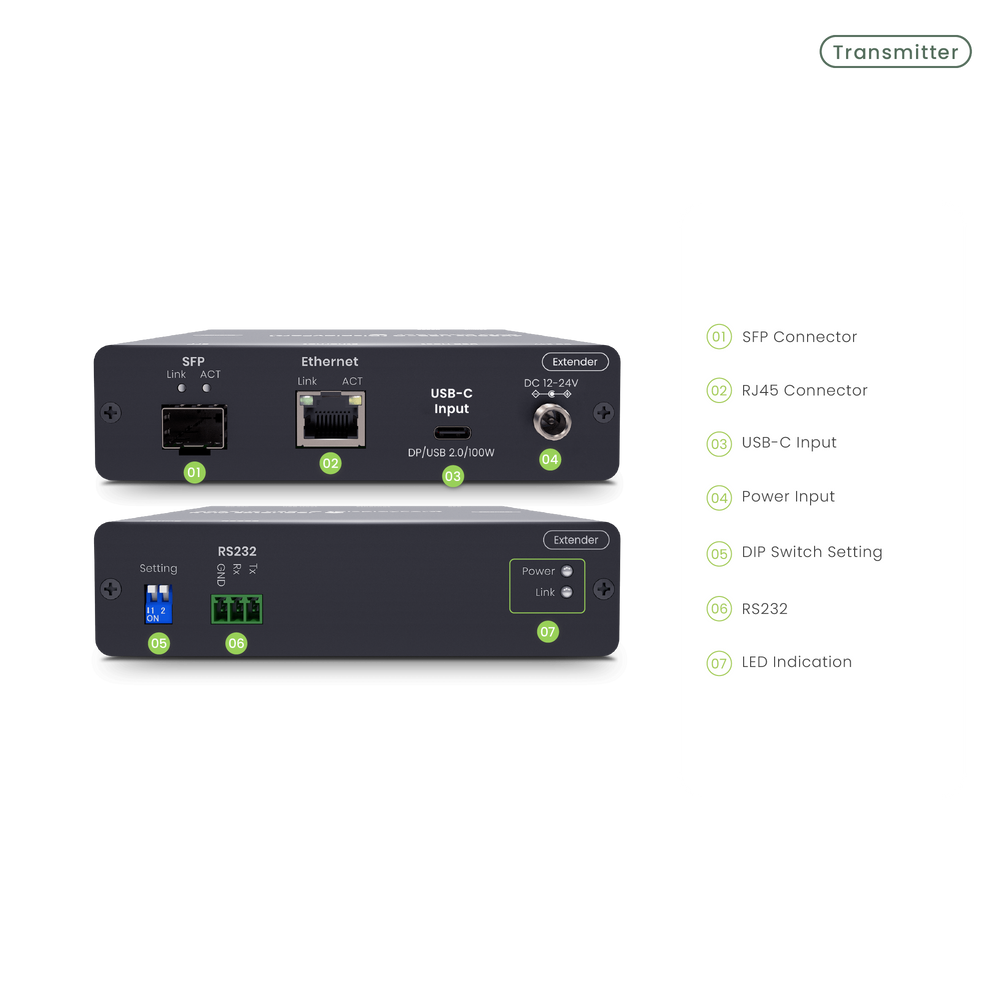

1. Connect the USB-C source to the UKM01PT-4K6G.
2. Link the transmitter to the UKM01PR-4K6G receiver using Cat5e/Cat6 or fiber.

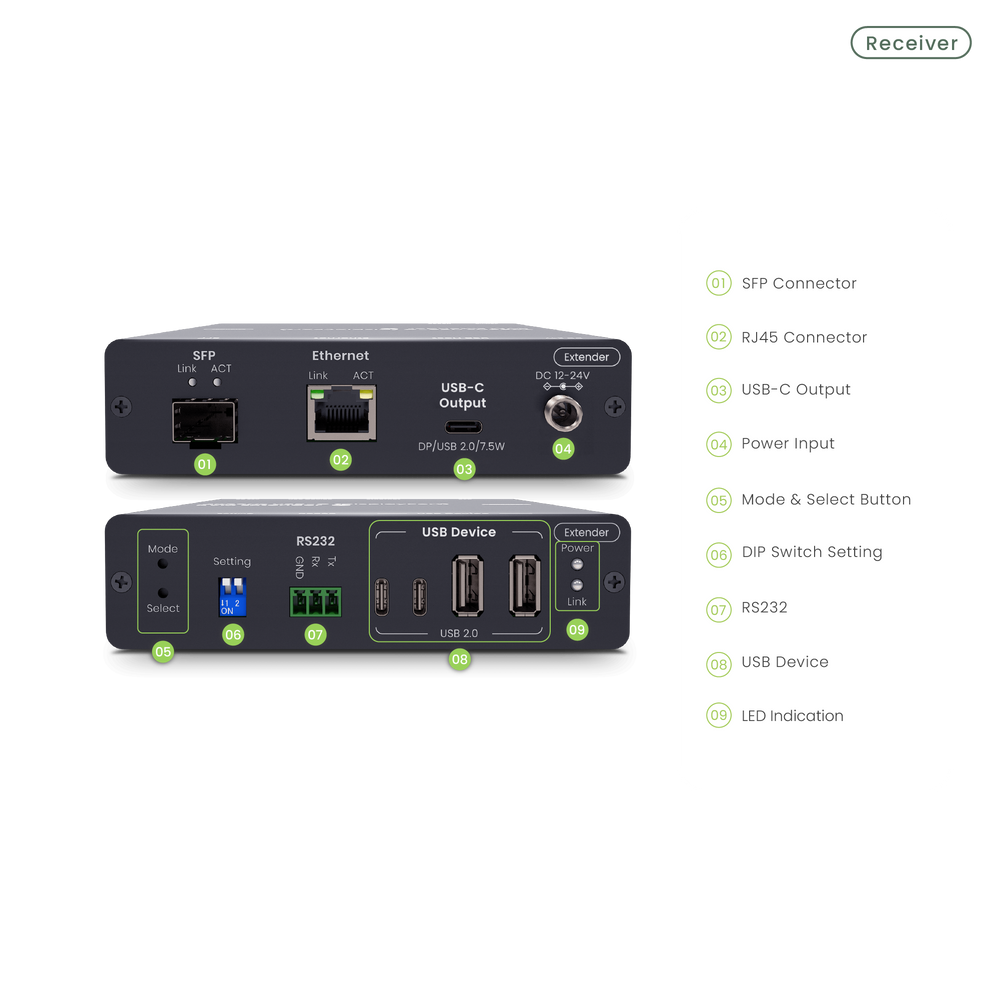

3. Connect the display and USB peripherals to the receiver.
4. Power the devices using USB PD or a DC 12-24V adapter.
5. Configure EDID settings via the transmitter’s DIP switch for optimal display compatibility.

1G SwiftSync Technology

SwiftSync is a high-efficiency HDMI® transmission technology that offers a cost-effective alternative to uncompressed HDBaseT. With advanced 1G compression, it supports 4K60Hz and keeps latency under 3 frames (0.03 seconds) —near real-time with no visible delay. Watch our test video to see latency and image quality in action.
