4K DisplayPort CAT5e Extender 70M - TAA Compliant
SKU: DP02E
In Stock
- Regular price
- $285.00
- $285.00
- Regular price
- Sale price
- $315.00
- Unit price
- per
Couldn't load pickup availability
Contact us for project pricing or out-of-stock orders, and we’ll secure them quickly for you.
Description
Package
Specification
FAQ
Download

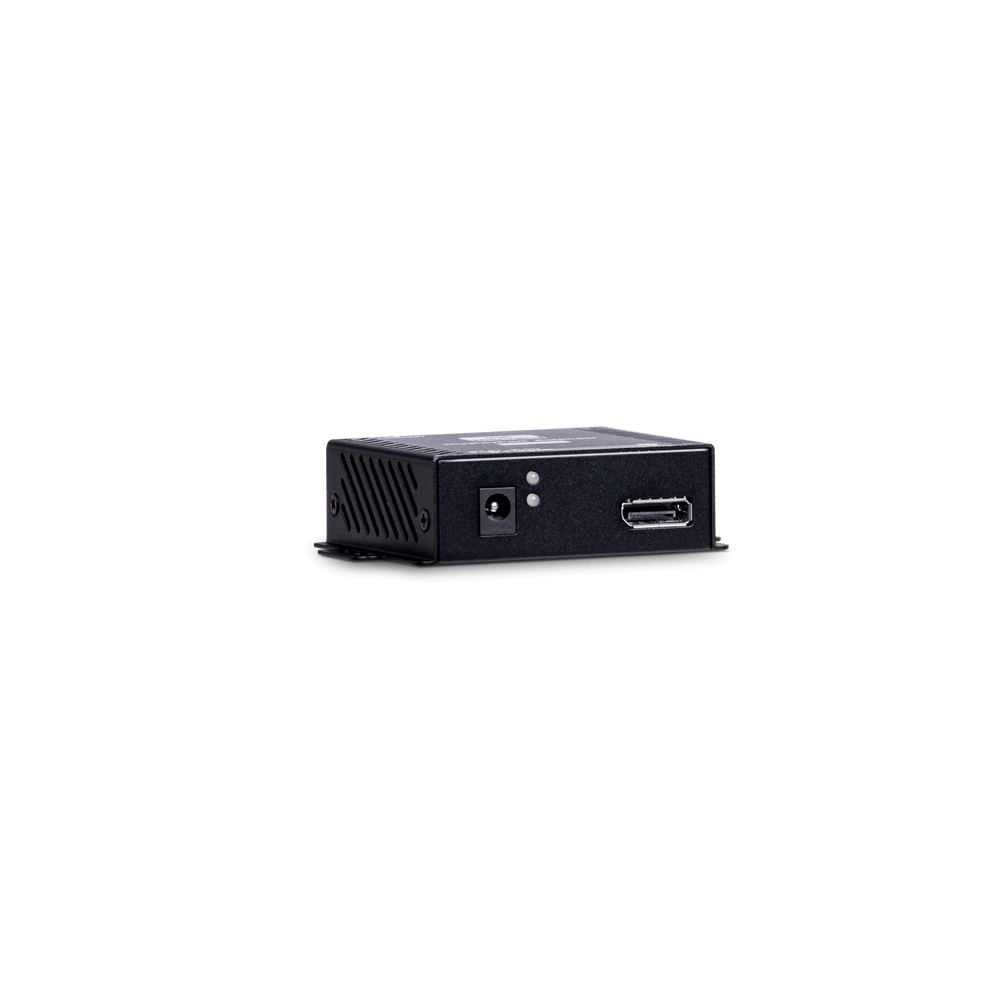

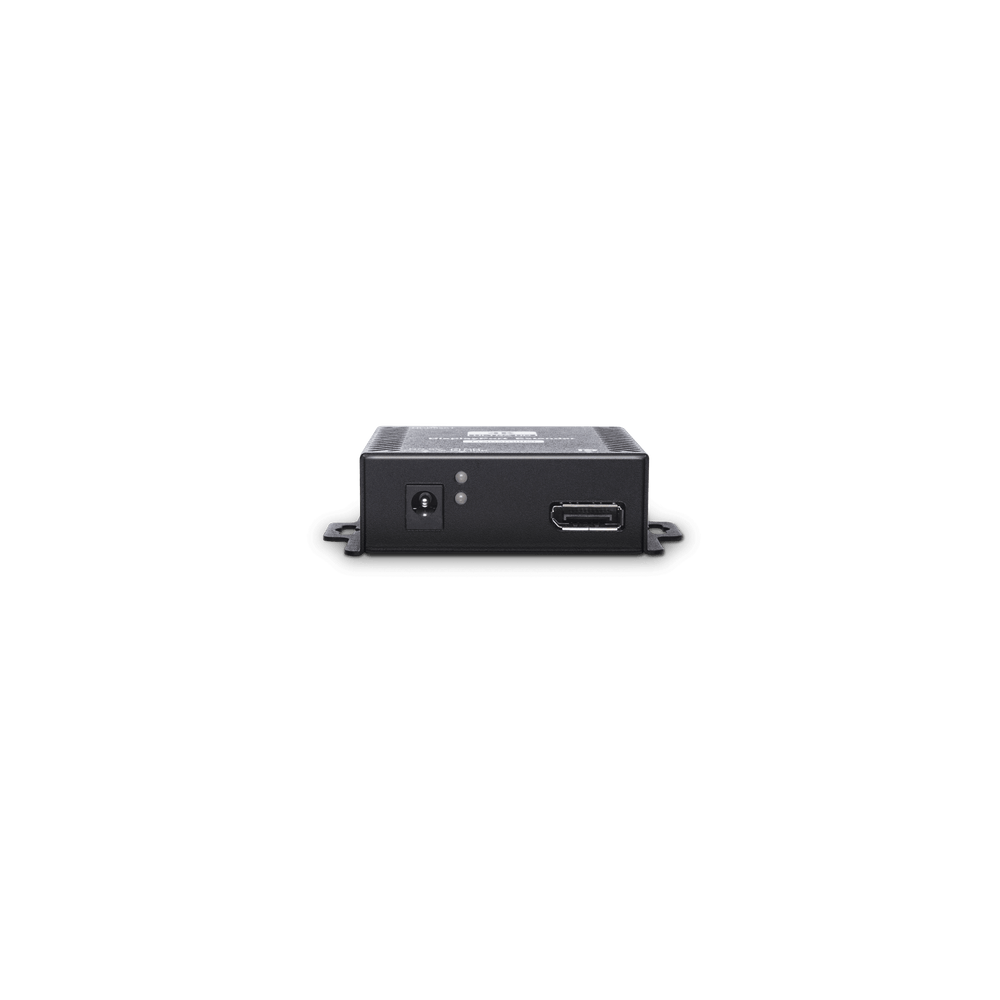

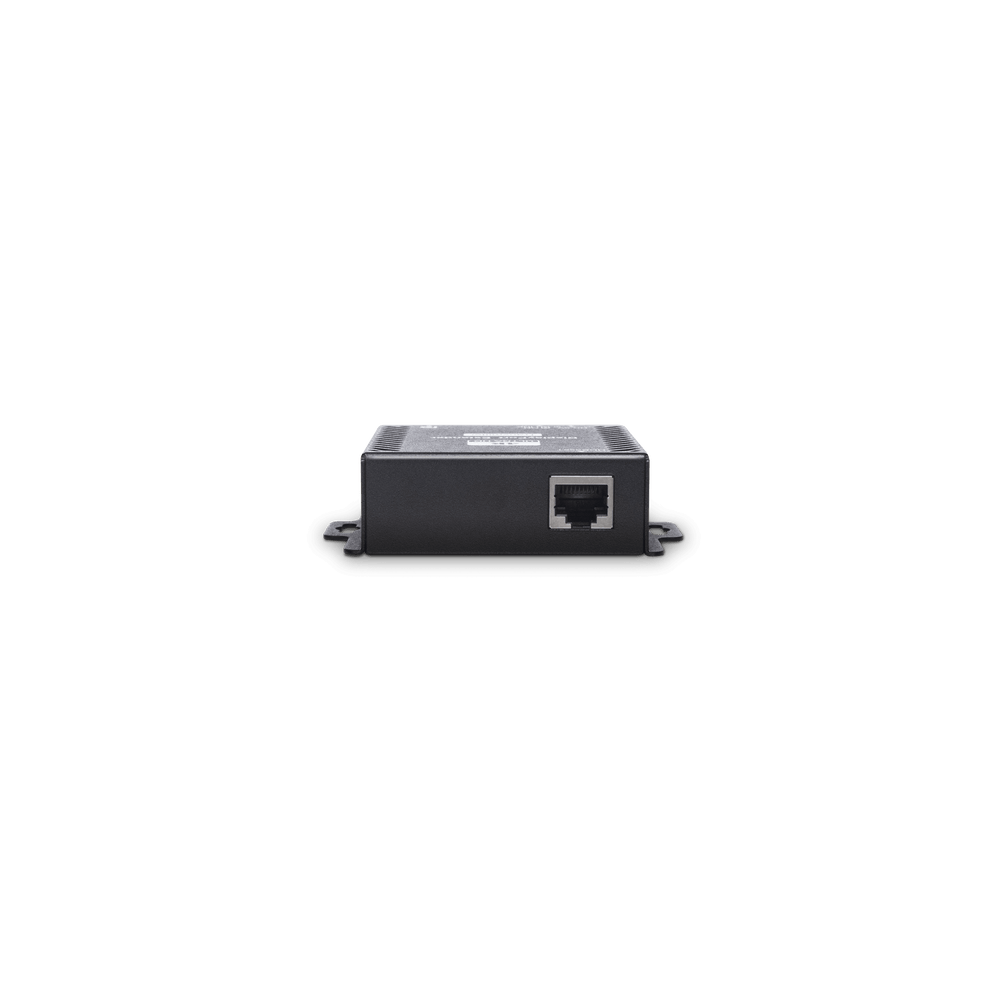

DP02E is a DisplayPort extender that use HDBaseT technology to send uncompressed UHD video over a cost-effective Ethernet cable. It supports the transmission distance up to 70M and the resolution up to 4K@30Hz 4:4:4. It is an ideal solution to show video from a PC/laptop on a projector/monitor.
| ITEM NO. | DP02ET | DP02ER |
Support
| Compliance | DP 1.2a, HDCP |
| Max. DisplayPort Resolution | 4096 x 2160@30Hz 4:4:4 |
| Max. Transmission Distance | 70M at 1080p@60Hz, 40M at 4K@30Hz 4:4:4 |
| Audio Support | LPCM 7.1 @ 192KHz, Dolby TrueHD, DTS-HD MA |
Ports & Interfaces
| Video Input | 1 x DisplayPort | 1 x HDBaseT |
| Video Output | 1 x HDBaseT | 1 x DisplayPort |
| Link Cable | CAT6 or greater |
Power
| Power Supply | DC 5V 2A | DC 5V 2A |
| Power Consumption | 5W (Max), 1.32W (Low Power) | 8W (Max), 1.62W (Low Power) |
Ambient Temperature
| Operation | -10 to 45℃ |
| Storage | -30 to 70℃ |
| Humidity | Up to 95% |
Physical Characteristic
| Dimensions | 92 x 69 x 25mm | 92 x 69 x 25mm |
| Weight | 160g | 180g |
