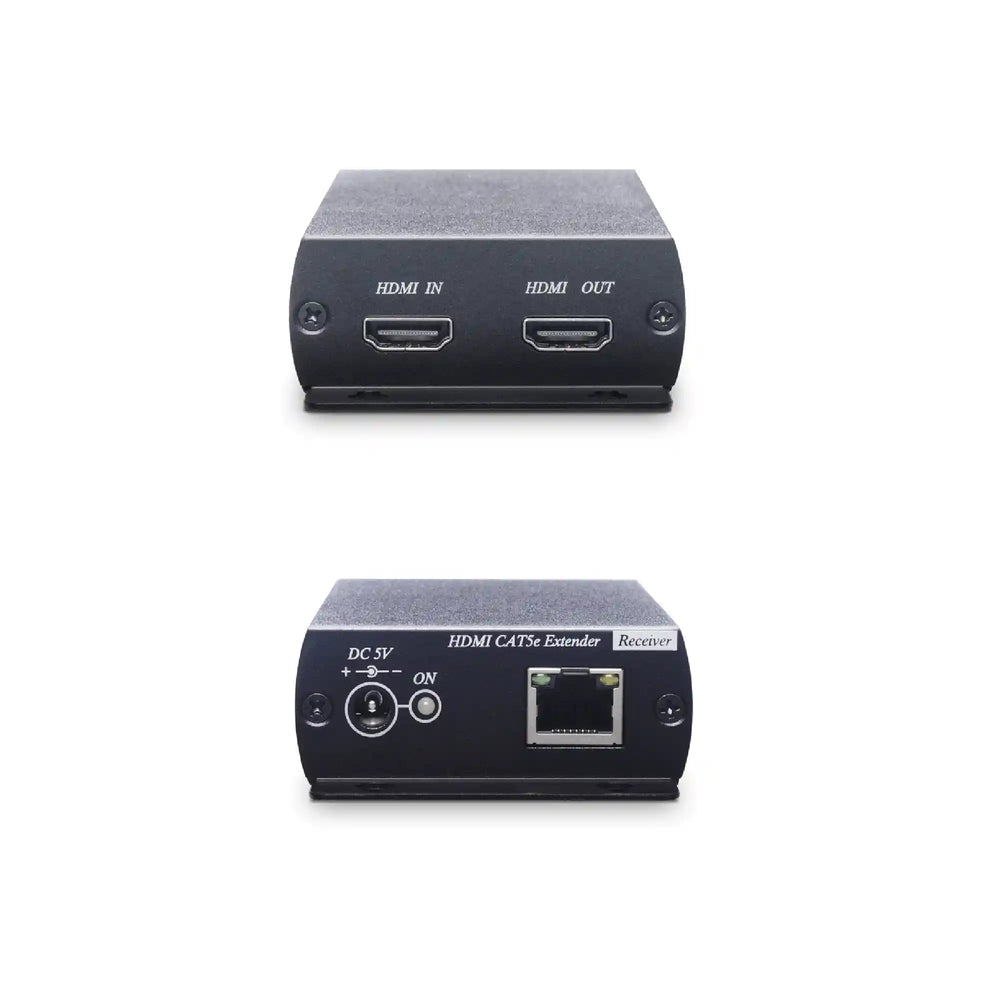

HDMI® CAT5e Extender with HDMI Loop Out 150M

‍

1080P Ethernet/Cat6e HDMI Extender Splitter

HE03 is a 1080p HDMI Extender Splitter that can transmit HDMI over network cables (CAT5e or higher) for up to 150m and distribute video to multi-monitors via a network switch. Since HE03 applies HDMI over Ethernet/IP technology, it can be used with other IP devices to provide one-to-many HDMI video distribution and incredibly longer extension distances.

‍

‍

Features

HDMI over Ethernet/IP

HE03 converts A/V signals into IP signals for transmission, making it compatible with other IP devices.

‍

Network Switch

You can connect HE03 to a network switch and distribute HDMI over Ethernet to multiple monitors, achieving one-to-many distribution.

‍

Ethernet Repeater

Connecting HE03 to an Ethernet repeater can extend the signal to a greater distance. For example, with SC&T SR01X, each additional SR01X added in series can extend the transmission by 120m.

‍

HDMI Loop-out

HE03 supports local output, allowing you to conveniently monitor the device.

‍

4K HDMI Extender Splitter

In addition to HE03, SC&T offers high-resolution 4K HDMI Extender Splitter versions, which are also HDMI extenders over Ethernet.

‍

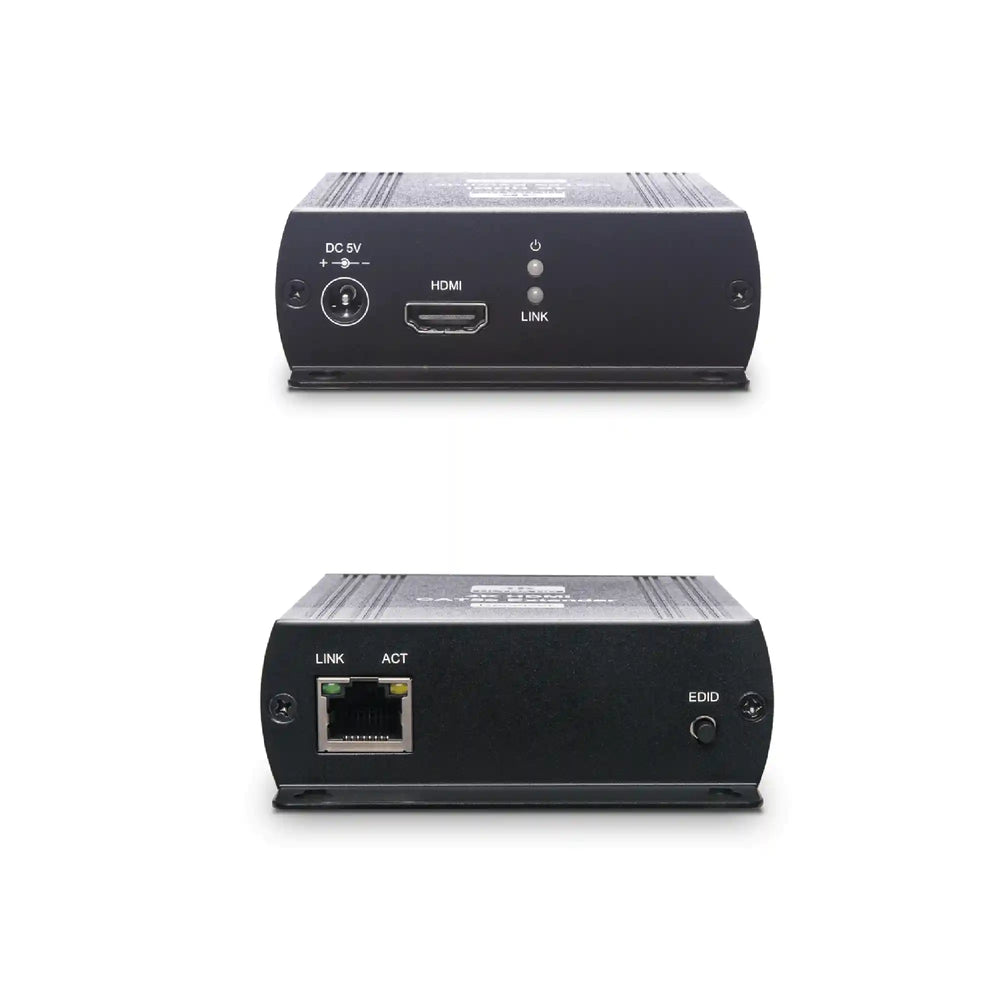

4K HDMI Extender Splitter

‍

HE03-4K is a 4K 30Hz HDMI extender that extends HDMI signals for up to 120m - 140m over network cables. Additionally, it can be connected to a network switch to achieve one-to-many HDMI distribution.

• Resolution up to 4K@30Hz 4:4:4.
• Signal extension up to 120M over CAT5e, 140M over CAT6.
• Workable with Ethernet switch for signal distribution.
• Workable with SR01X (Ethernet repeater) for long-distance transmission.

‍

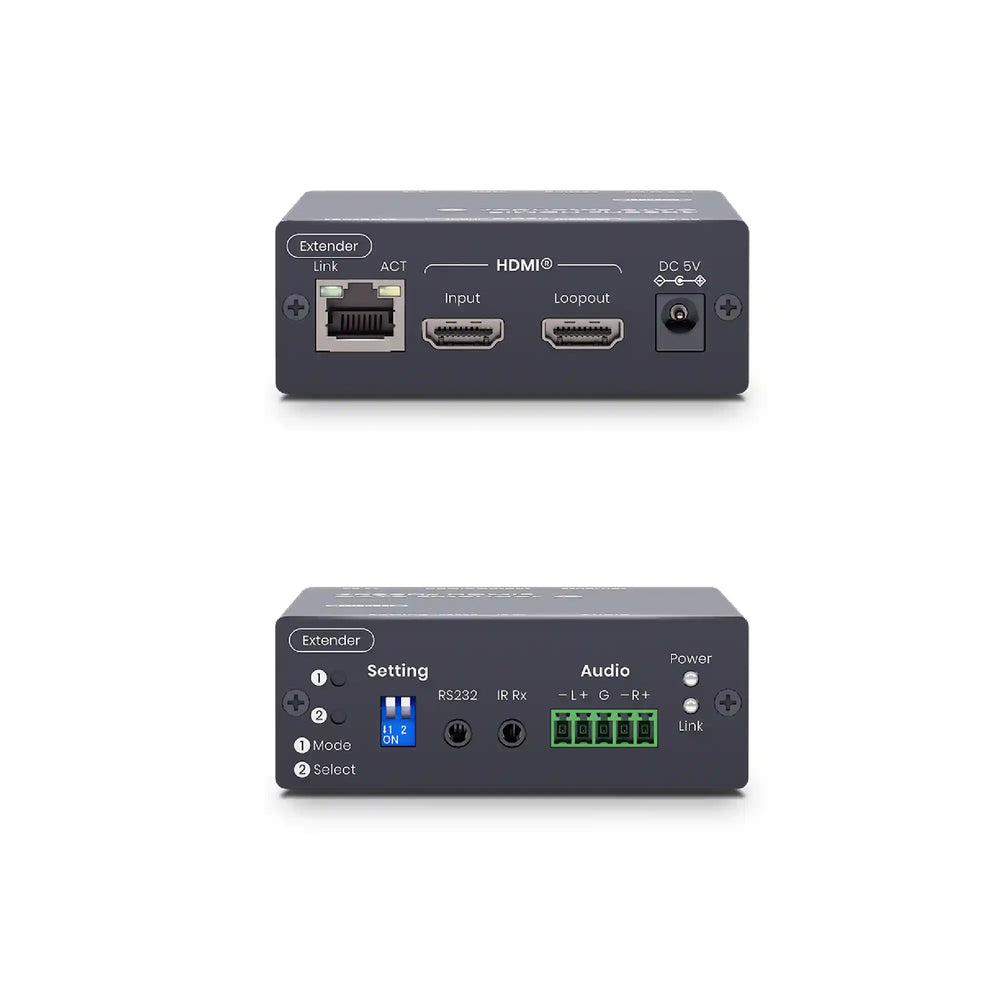

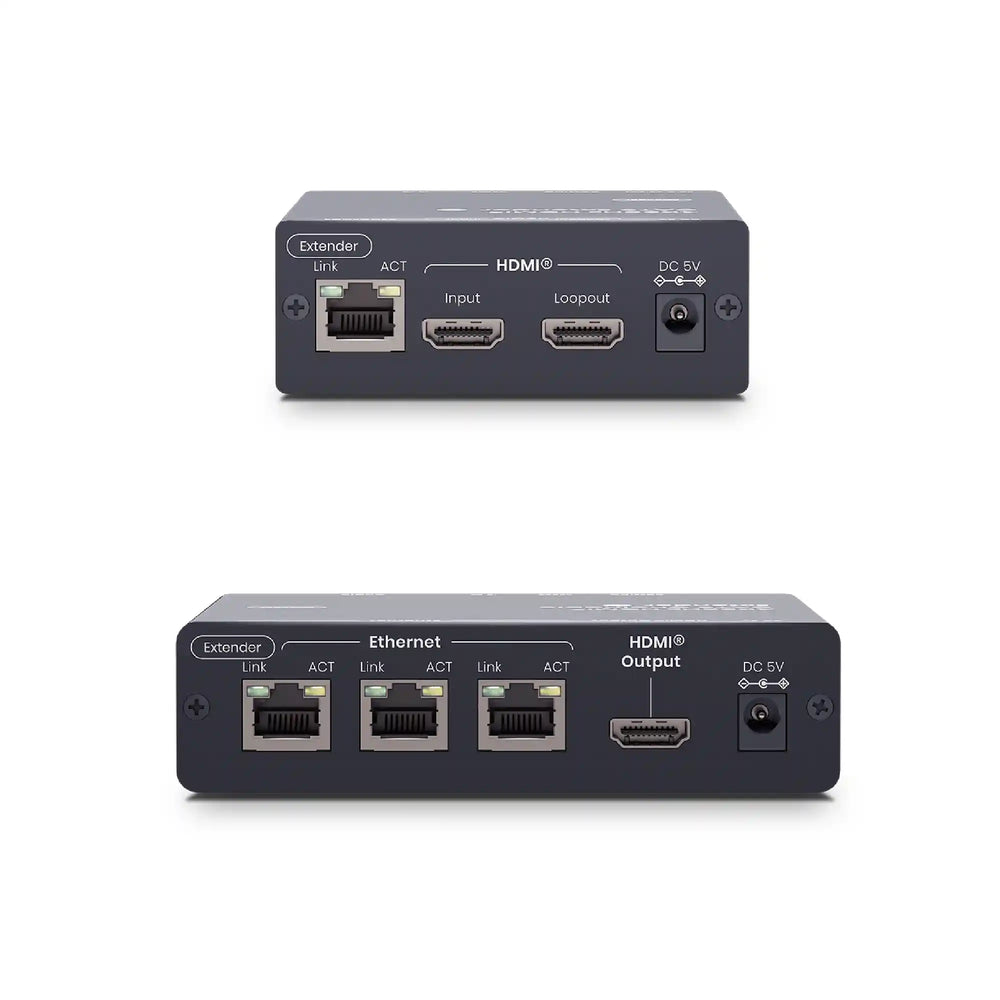

4K HDMI Extender Splitter (Chainable Receiver)

‍

HE03L-4K is the loop-out version of HE03-4K. It can also transmit 4K 30Hz HDMI for up to 120m - 140m and supports the daisy chain. Without the use of a network switch, it can extend and distribute AV signals by daisy-chaining up to 250 units.

• Resolution up to 4K@30Hz 4:4:4.
• Signal extension up to 120M over CAT5e, 140M over CAT6.
• Splits up to 250 HDMI displays, 2.5 km in total.
• Works perfectly with SR01X for a longer transmission distance.
